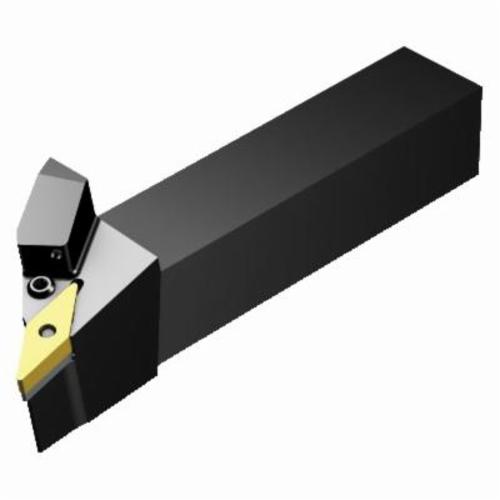

Sandvik Coromant 6188563 T-Max P Shank Tool, PVJNR/L..HP Tool Holder, VNMG 160408 (MIIDM) and VNMG 332 (MIIDN) Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188563 T-Max P Shank Tool, PVJNR/L..HP Tool Holder, VNMG 160408 (MIIDM) and VNMG 332 (MIIDN) Insert
SKU791194
MFGR #6188563
$/ea
Sandvik Coromant Shank Tool, Series: T-Max P, PVJNR/L..HP Tool Holder, 4-1/2 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: VNMG 160408 (MIIDM) and VNMG 332 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: PVJNR 12 3BHP, ISO Code: PVJNR 12 3BHP, -5 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: T-Max P, PVJNR/L..HP Tool Holder, 4-1/2 in Overall Length, Rectangle Shank, 3/4 in H x 3/4 in W Shank, Insert Compatibility: VNMG 160408 (MIIDM) and VNMG 332 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: PVJNR 12 3BHP, ISO Code: PVJNR 12 3BHP, -5 deg Rake, Steel
Alternate Catalog Number PVJNR 12 3BHP ANSI Code PVJNR 12 3BHP Catalog Number 6188563 Country of Origin SE Gross Weight Per Pack 0.7800 lb Insert Seat Size 3/8 ISO Code PVJNR 12 3BHP Item Group 210 Material Steel Series T-Max P Shank Type Rectangle UPC 11 69826268230 UPC 12 69826268230 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility VNMG 160408 (MIIDM) and VNMG 332 (MIIDN) Lead Angle -3 deg Overall Length 4-1/2 in Rake -5 deg Shank Size 3/4 in H x 3/4 in W Tool Holder Style PVJNR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles -13 deg inclination 93 deg cutting edge 41 deg maximum ramping 20 life cycle state 42.6 mm maximum overhang 2 Nm torque 25.4 mm W functional Lever hole clamping V - 35 deg diamond insert ANSI Code: PVJNR 12 3BHP ISO Code: PVJNR 12 3BHP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | PVJNR 12 3BHP |
| ANSI Code | PVJNR 12 3BHP |
| Catalog Number | 6188563 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.7800 lb |
| Insert Seat Size | 3/8 |
| ISO Code | PVJNR 12 3BHP |
| Item Group | 210 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| UPC 11 | 69826268230 |
| UPC 12 | 69826268230 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | VNMG 160408 (MIIDM) and VNMG 332 (MIIDN) |
| Lead Angle | -3 deg |
| Overall Length | 4-1/2 in |
| Rake | -5 deg |
| Shank Size | 3/4 in H x 3/4 in W |
| Tool Holder Style | PVJNR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| -13 deg inclination |
| 93 deg cutting edge |
| 41 deg maximum ramping |
| 20 life cycle state |
| 42.6 mm maximum overhang |
| 2 Nm torque |
| 25.4 mm W functional |
| Lever hole clamping |
| V - 35 deg diamond insert |
| ANSI Code: PVJNR 12 3BHP |
| ISO Code: PVJNR 12 3BHP |
