Sandvik Coromant

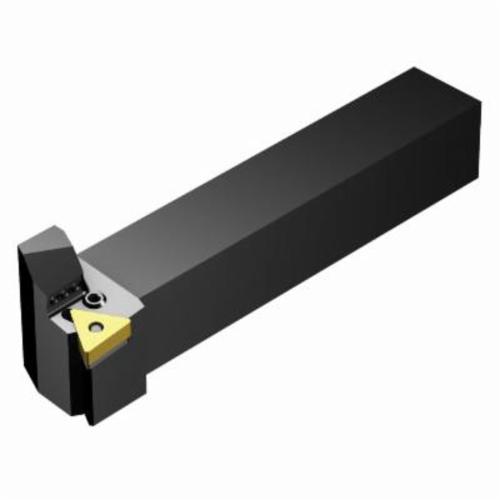

Sandvik Coromant 6188557 T-Max P Shank Tool, PTGNR/L..HP Tool Holder, TNMG 160408 (MIIDM) and TNMG 332 (MIIDN) Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6188557 T-Max P Shank Tool, PTGNR/L..HP Tool Holder, TNMG 160408 (MIIDM) and TNMG 332 (MIIDN) Insert
SKU1247858
MFGR #6188557
Your Cost: $312.92/ea
Sandvik Coromant Shank Tool, Series: T-Max P, PTGNR/L..HP Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1 in W Shank, Insert Compatibility: TNMG 160408 (MIIDM) and TNMG 332 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -1 deg Lead Angle, ANSI Code: PTGNR 85 3DHP, ISO Code: PTGNR 85 3DHP, -6 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: T-Max P, PTGNR/L..HP Tool Holder, 6 in Overall Length, Rectangle Shank, 1-1/4 in H x 1 in W Shank, Insert Compatibility: TNMG 160408 (MIIDM) and TNMG 332 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -1 deg Lead Angle, ANSI Code: PTGNR 85 3DHP, ISO Code: PTGNR 85 3DHP, -6 deg Rake, Steel
ANSI Code PTGNR 85 3DHP Catalog Number 6188557 Gross Weight Per Pack 2.0000 lb Insert Seat Size 3/8 ISO Code PTGNR 85 3DHP Material Steel Series T-Max P Shank Type Rectangle UPC 11 69826268220 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility TNMG 160408 (MIIDM) and TNMG 332 (MIIDN) Lead Angle -1 deg Overall Length 6 in Rake -6 deg Shank Size 1-1/4 in H x 1 in W Tool Holder Style PTGNR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles -6 deg inclination 91 deg cutting edge 0 deg maximum ramping 40 life cycle state 23.9 mm maximum overhang 2 Nm torque 31.8 mm W functional Lever hole clamping T - Triangle insert ANSI Code: PTGNR 85 3DHP ISO Code: PTGNR 85 3DHP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | PTGNR 85 3DHP |
| Catalog Number | 6188557 |
| Gross Weight Per Pack | 2.0000 lb |
| Insert Seat Size | 3/8 |
| ISO Code | PTGNR 85 3DHP |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| UPC 11 | 69826268220 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | TNMG 160408 (MIIDM) and TNMG 332 (MIIDN) |
| Lead Angle | -1 deg |
| Overall Length | 6 in |
| Rake | -6 deg |
| Shank Size | 1-1/4 in H x 1 in W |
| Tool Holder Style | PTGNR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| -6 deg inclination |
| 91 deg cutting edge |
| 0 deg maximum ramping |
| 40 life cycle state |
| 23.9 mm maximum overhang |
| 2 Nm torque |
| 31.8 mm W functional |
| Lever hole clamping |
| T - Triangle insert |
| ANSI Code: PTGNR 85 3DHP |
| ISO Code: PTGNR 85 3DHP |
