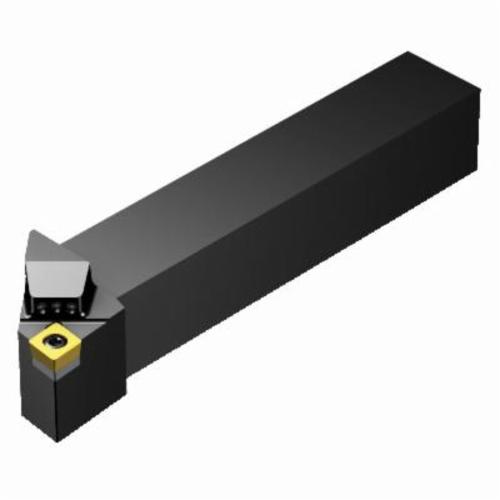

Sandvik Coromant 6188511 CoroTurn 107 Shank Tool, SCLCR/L..HP Tool Holder, -5 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6188511 CoroTurn 107 Shank Tool, SCLCR/L..HP Tool Holder, -5 deg Lead, Rectangle Shank, Right Hand
SKU1246583
MFGR #6188511
Your Cost: $400.06/ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SCLCR/L..HP Tool Holder, 3.937 in Overall Length, Rectangle Shank, 0.63 in H x 0.63 in W Shank, Insert Compatibility: CCMT 09T308 (MIIDM) and CCMT 3(2.5)2 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -5 deg Lead Angle, ANSI Code: SCLCR 1616H 09HP, ISO Code: SCLCR 1616H 09HP, 0 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SCLCR/L..HP Tool Holder, 3.937 in Overall Length, Rectangle Shank, 0.63 in H x 0.63 in W Shank, Insert Compatibility: CCMT 09T308 (MIIDM) and CCMT 3(2.5)2 (MIIDN), 3/8 Insert Seat, Right Hand Cutting, -5 deg Lead Angle, ANSI Code: SCLCR 1616H 09HP, ISO Code: SCLCR 1616H 09HP, 0 deg Rake, Steel
Alternate Catalog Number SCLCR 1616H 09HP ANSI Code SCLCR 1616H 09HP Catalog Number 6188511 Country of Origin SE Gross Weight Per Pack 0.5200 lb Insert Seat Size 3/8 ISO Code SCLCR 1616H 09HP Item Group 210 Material Steel Series CoroTurn 107 Shank Type Rectangle UPC 11 69826268520 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility CCMT 09T308 (MIIDM) and CCMT 3(2.5)2 (MIIDN) Lead Angle -5 deg Overall Length 3.937 in Rake 0 deg Shank Size 0.63 in H x 0.63 in W Tool Holder Style SCLCR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles 0 deg inclination 95 deg cutting edge 0 deg maximum ramping 20 life cycle state 26.5 mm maximum overhang 3 Nm torque 20 mm W functional 40 - 60 deg insert screw clamping C - 80 deg diamond insert ANSI Code: SCLCR 1616H 09HP ISO Code: SCLCR 1616H 09HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SCLCR 1616H 09HP |
| ANSI Code | SCLCR 1616H 09HP |
| Catalog Number | 6188511 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.5200 lb |
| Insert Seat Size | 3/8 |
| ISO Code | SCLCR 1616H 09HP |
| Item Group | 210 |
| Material | Steel |
| Series | CoroTurn 107 |
| Shank Type | Rectangle |
| UPC 11 | 69826268520 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | CCMT 09T308 (MIIDM) and CCMT 3(2.5)2 (MIIDN) |
| Lead Angle | -5 deg |
| Overall Length | 3.937 in |
| Rake | 0 deg |
| Shank Size | 0.63 in H x 0.63 in W |
| Tool Holder Style | SCLCR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 0 deg inclination |
| 95 deg cutting edge |
| 0 deg maximum ramping |
| 20 life cycle state |
| 26.5 mm maximum overhang |
| 3 Nm torque |
| 20 mm W functional |
| 40 - 60 deg insert screw clamping |
| C - 80 deg diamond insert |
| ANSI Code: SCLCR 1616H 09HP |
| ISO Code: SCLCR 1616H 09HP |
