Sandvik Coromant

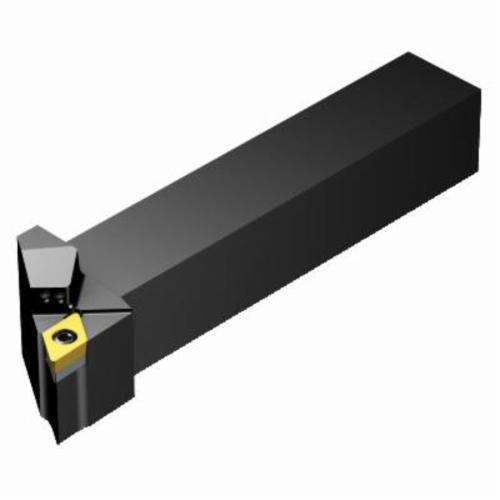

Sandvik Coromant 6188500 CoroTurn 107 Shank Tool, SDJCR/L..HP Tool Holder, DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6188500 CoroTurn 107 Shank Tool, SDJCR/L..HP Tool Holder, DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Left Hand
SKU1246543
MFGR #6188500
Your Cost: $400.06/ea
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SDJCR/L..HP Tool Holder, 3.937 in Overall Length, Rectangle Shank, 0.63 in H x 0.63 in W Shank, Insert Compatibility: DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN), 3/8 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: SDJCL 1616H 11HP, ISO Code: SDJCL 1616H 11HP, 0 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: CoroTurn 107, SDJCR/L..HP Tool Holder, 3.937 in Overall Length, Rectangle Shank, 0.63 in H x 0.63 in W Shank, Insert Compatibility: DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN), 3/8 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: SDJCL 1616H 11HP, ISO Code: SDJCL 1616H 11HP, 0 deg Rake, Steel
Alternate Catalog Number SDJCL 1616H 11HP ANSI Code SDJCL 1616H 11HP Catalog Number 6188500 Country of Origin SE Gross Weight Per Pack 0.5300 lb Insert Seat Size 3/8 ISO Code SDJCL 1616H 11HP Item Group 210 Material Steel Series CoroTurn 107 Shank Type Rectangle UPC 11 69826268556 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN) Lead Angle -3 deg Overall Length 3.937 in Rake 0 deg Shank Size 0.63 in H x 0.63 in W Tool Holder Style SDJCR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles 0 deg inclination 93 deg cutting edge 27 deg maximum ramping 20 life cycle state 28 mm maximum overhang 3 Nm torque 20 mm W functional 40 - 60 deg insert screw clamping D - 55 deg diamond insert ANSI Code: SDJCL 1616H 11HP ISO Code: SDJCL 1616H 11HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SDJCL 1616H 11HP |
| ANSI Code | SDJCL 1616H 11HP |
| Catalog Number | 6188500 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.5300 lb |
| Insert Seat Size | 3/8 |
| ISO Code | SDJCL 1616H 11HP |
| Item Group | 210 |
| Material | Steel |
| Series | CoroTurn 107 |
| Shank Type | Rectangle |
| UPC 11 | 69826268556 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | DCMT 11T308 (MIIDM) and DCMT 3(2.5)2 (MIIDN) |
| Lead Angle | -3 deg |
| Overall Length | 3.937 in |
| Rake | 0 deg |
| Shank Size | 0.63 in H x 0.63 in W |
| Tool Holder Style | SDJCR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| 0 deg inclination |
| 93 deg cutting edge |
| 27 deg maximum ramping |
| 20 life cycle state |
| 28 mm maximum overhang |
| 3 Nm torque |
| 20 mm W functional |
| 40 - 60 deg insert screw clamping |
| D - 55 deg diamond insert |
| ANSI Code: SDJCL 1616H 11HP |
| ISO Code: SDJCL 1616H 11HP |
