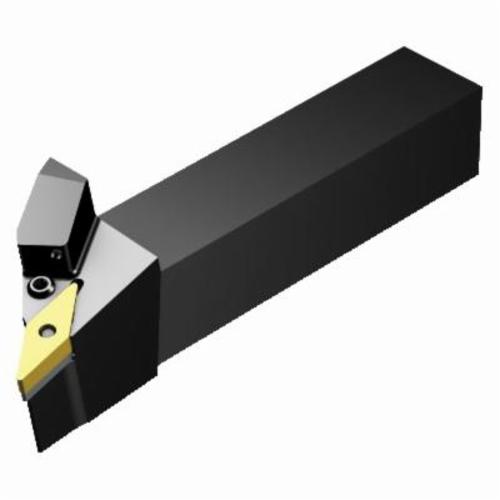

Sandvik Coromant 6188478 T-Max P Shank Tool, PVJNR/L..HP Tool Holder, VNMG 160408 (MIIDM) and VNMG 332 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6188478 T-Max P Shank Tool, PVJNR/L..HP Tool Holder, VNMG 160408 (MIIDM) and VNMG 332 (MIIDN) Insert, -3 deg Lead, Rectangle Shank, Left Hand
SKU1247866
MFGR #6188478
Your Cost: $441.36/ea
Sandvik Coromant Shank Tool, Series: T-Max P, PVJNR/L..HP Tool Holder, 3.937 in Overall Length, Rectangle Shank, 0.63 in H x 0.63 in W Shank, Insert Compatibility: VNMG 160408 (MIIDM) and VNMG 332 (MIIDN), 3/8 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: PVJNL 1616H 16HP, ISO Code: PVJNL 1616H 16HP, -5 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: T-Max P, PVJNR/L..HP Tool Holder, 3.937 in Overall Length, Rectangle Shank, 0.63 in H x 0.63 in W Shank, Insert Compatibility: VNMG 160408 (MIIDM) and VNMG 332 (MIIDN), 3/8 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: PVJNL 1616H 16HP, ISO Code: PVJNL 1616H 16HP, -5 deg Rake, Steel
Alternate Catalog Number PVJNL 1616H 16HP ANSI Code PVJNL 1616H 16HP Catalog Number 6188478 Country of Origin SE Gross Weight Per Pack 0.5400 lb Insert Seat Size 3/8 ISO Code PVJNL 1616H 16HP Item Group 210 Material Steel Series T-Max P Shank Type Rectangle UPC 11 69826268224 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility VNMG 160408 (MIIDM) and VNMG 332 (MIIDN) Lead Angle -3 deg Overall Length 3.937 in Rake -5 deg Shank Size 0.63 in H x 0.63 in W Tool Holder Style PVJNR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles -13 deg inclination 93 deg cutting edge 41 deg maximum ramping 20 life cycle state 41.6 mm maximum overhang 2 Nm torque 20 mm W functional Lever hole clamping V - 35 deg diamond insert ANSI Code: PVJNL 1616H 16HP ISO Code: PVJNL 1616H 16HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | PVJNL 1616H 16HP |
| ANSI Code | PVJNL 1616H 16HP |
| Catalog Number | 6188478 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.5400 lb |
| Insert Seat Size | 3/8 |
| ISO Code | PVJNL 1616H 16HP |
| Item Group | 210 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| UPC 11 | 69826268224 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | VNMG 160408 (MIIDM) and VNMG 332 (MIIDN) |
| Lead Angle | -3 deg |
| Overall Length | 3.937 in |
| Rake | -5 deg |
| Shank Size | 0.63 in H x 0.63 in W |
| Tool Holder Style | PVJNR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| -13 deg inclination |
| 93 deg cutting edge |
| 41 deg maximum ramping |
| 20 life cycle state |
| 41.6 mm maximum overhang |
| 2 Nm torque |
| 20 mm W functional |
| Lever hole clamping |
| V - 35 deg diamond insert |
| ANSI Code: PVJNL 1616H 16HP |
| ISO Code: PVJNL 1616H 16HP |
