Sandvik Coromant

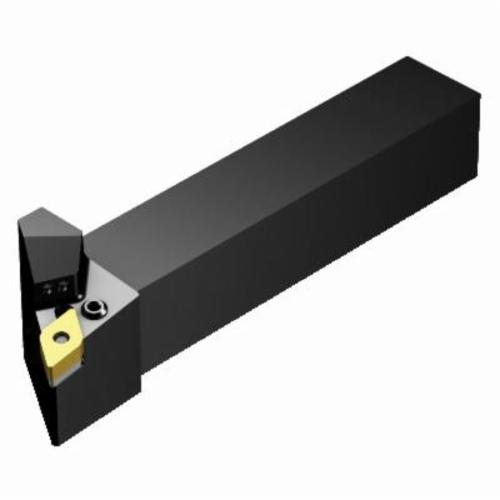

Sandvik Coromant 6188456 T-Max P Shank Tool, PDJNR/L..HP Tool Holder, DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6188456 T-Max P Shank Tool, PDJNR/L..HP Tool Holder, DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) Insert
SKU1247170
MFGR #6188456
Your Cost: $286.39/ea
Sandvik Coromant Shank Tool, Series: T-Max P, PDJNR/L..HP Tool Holder, 4.9212 in Overall Length, Rectangle Shank, 0.7874 in H x 0.7874 in W Shank, Insert Compatibility: DNMG 150608 (MIIDM) and DNMG 442 (MIIDN), 1/2 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: PDJNL 2020K 15HP, ISO Code: PDJNL 2020K 15HP, -6 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: T-Max P, PDJNR/L..HP Tool Holder, 4.9212 in Overall Length, Rectangle Shank, 0.7874 in H x 0.7874 in W Shank, Insert Compatibility: DNMG 150608 (MIIDM) and DNMG 442 (MIIDN), 1/2 Insert Seat, Left Hand Cutting, -3 deg Lead Angle, ANSI Code: PDJNL 2020K 15HP, ISO Code: PDJNL 2020K 15HP, -6 deg Rake, Steel
ANSI Code PDJNL 2020K 15HP Catalog Number 6188456 Country of Origin SE Gross Weight Per Pack 0.9500 lb Insert Seat Size 1/2 ISO Code PDJNL 2020K 15HP Material Steel Series T-Max P Shank Type Rectangle UPC 11 69826268149 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) Lead Angle -3 deg Overall Length 4.9212 in Rake -6 deg Shank Size 0.7874 in H x 0.7874 in W Tool Holder Style PDJNR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles -7 deg inclination 93 deg cutting edge 27 deg maximum ramping 20 life cycle state 42.7 mm maximum overhang 5 Nm torque 25 mm W functional Lever hole clamping D - 55 deg diamond insert ANSI Code: PDJNL 2020K 15HP ISO Code: PDJNL 2020K 15HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | PDJNL 2020K 15HP |
| Catalog Number | 6188456 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.9500 lb |
| Insert Seat Size | 1/2 |
| ISO Code | PDJNL 2020K 15HP |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| UPC 11 | 69826268149 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | DNMG 150608 (MIIDM) and DNMG 442 (MIIDN) |
| Lead Angle | -3 deg |
| Overall Length | 4.9212 in |
| Rake | -6 deg |
| Shank Size | 0.7874 in H x 0.7874 in W |
| Tool Holder Style | PDJNR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| -7 deg inclination |
| 93 deg cutting edge |
| 27 deg maximum ramping |
| 20 life cycle state |
| 42.7 mm maximum overhang |
| 5 Nm torque |
| 25 mm W functional |
| Lever hole clamping |
| D - 55 deg diamond insert |
| ANSI Code: PDJNL 2020K 15HP |
| ISO Code: PDJNL 2020K 15HP |
