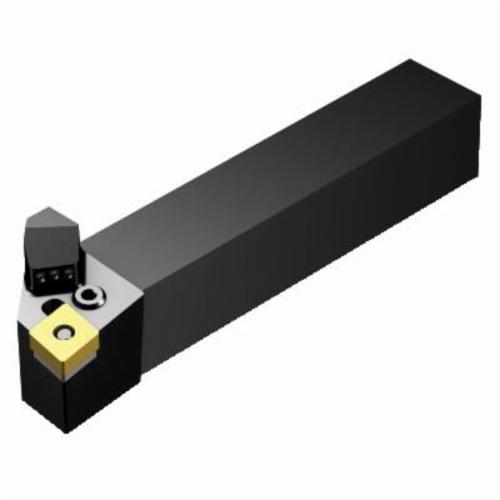

Sandvik Coromant 6188445 T-Max P Shank Tool, PCLNR/L..HP Tool Holder, CNMG 160612 (MIIDM) and CNMG 543 (MIIDN) Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188445 T-Max P Shank Tool, PCLNR/L..HP Tool Holder, CNMG 160612 (MIIDM) and CNMG 543 (MIIDN) Insert
SKU1247192
MFGR #6188445
$/ea
Sandvik Coromant Shank Tool, Series: T-Max P, PCLNR/L..HP Tool Holder, 5.9055 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: CNMG 160612 (MIIDM) and CNMG 543 (MIIDN), 5/8 Insert Seat, Right Hand Cutting, -5 deg Lead Angle, ANSI Code: PCLNR 2525M 16HP, ISO Code: PCLNR 2525M 16HP, -6 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: T-Max P, PCLNR/L..HP Tool Holder, 5.9055 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: CNMG 160612 (MIIDM) and CNMG 543 (MIIDN), 5/8 Insert Seat, Right Hand Cutting, -5 deg Lead Angle, ANSI Code: PCLNR 2525M 16HP, ISO Code: PCLNR 2525M 16HP, -6 deg Rake, Steel
Alternate Catalog Number PCLNR 2525M 16HP ANSI Code PCLNR 2525M 16HP Catalog Number 6188445 Country of Origin SE Gross Weight Per Pack 1.7200 lb Insert Seat Size 5/8 ISO Code PCLNR 2525M 16HP Item Group 210 Material Steel Series T-Max P Shank Type Rectangle UPC 11 69826268134 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility CNMG 160612 (MIIDM) and CNMG 543 (MIIDN) Lead Angle -5 deg Overall Length 5.9055 in Rake -6 deg Shank Size 0.9842 in H x 0.9842 in W Tool Holder Style PCLNR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles -6 deg inclination 95 deg cutting edge 0 deg maximum ramping 20 life cycle state 32.6 mm maximum overhang 5 Nm torque 32 mm W functional Lever hole clamping C - 80 deg diamond insert ANSI Code: PCLNR 2525M 16HP ISO Code: PCLNR 2525M 16HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | PCLNR 2525M 16HP |
| ANSI Code | PCLNR 2525M 16HP |
| Catalog Number | 6188445 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.7200 lb |
| Insert Seat Size | 5/8 |
| ISO Code | PCLNR 2525M 16HP |
| Item Group | 210 |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| UPC 11 | 69826268134 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | CNMG 160612 (MIIDM) and CNMG 543 (MIIDN) |
| Lead Angle | -5 deg |
| Overall Length | 5.9055 in |
| Rake | -6 deg |
| Shank Size | 0.9842 in H x 0.9842 in W |
| Tool Holder Style | PCLNR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| -6 deg inclination |
| 95 deg cutting edge |
| 0 deg maximum ramping |
| 20 life cycle state |
| 32.6 mm maximum overhang |
| 5 Nm torque |
| 32 mm W functional |
| Lever hole clamping |
| C - 80 deg diamond insert |
| ANSI Code: PCLNR 2525M 16HP |
| ISO Code: PCLNR 2525M 16HP |
