Sandvik Coromant 6188424 T-Max P Shank Tool, PCLNR/L..HP Tool Holder, CNMG 120408 (MIIDM) and CNMG 432 (MIIDN) Insert, -5 deg Lead, Rectangle Shank, Left Hand

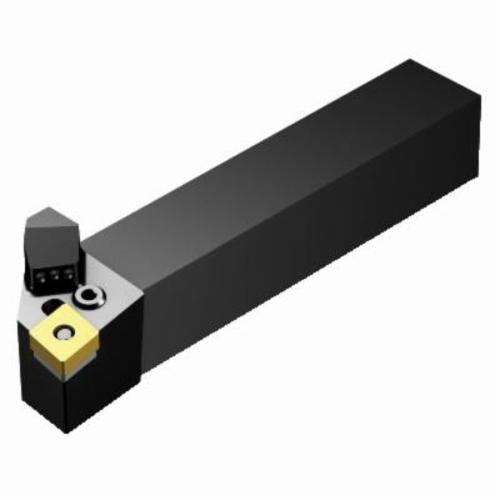

Custom_Product_Images_Illustration
Sandvik Coromant 6188424 T-Max P Shank Tool, PCLNR/L..HP Tool Holder, CNMG 120408 (MIIDM) and CNMG 432 (MIIDN) Insert, -5 deg Lead, Rectangle Shank, Left Hand
SKU1247203
MFGR #6188424
Your Cost: $286.39/ea
Sandvik Coromant Shank Tool, Series: T-Max P, PCLNR/L..HP Tool Holder, 4.9212 in Overall Length, Rectangle Shank, 0.7874 in H x 0.7874 in W Shank, Insert Compatibility: CNMG 120408 (MIIDM) and CNMG 432 (MIIDN), 1/2 Insert Seat, Left Hand Cutting, -5 deg Lead Angle, ANSI Code: PCLNL 2020K 12HP, ISO Code: PCLNL 2020K 12HP, -6 deg Rake, Steel
Sandvik Coromant Shank Tool, Series: T-Max P, PCLNR/L..HP Tool Holder, 4.9212 in Overall Length, Rectangle Shank, 0.7874 in H x 0.7874 in W Shank, Insert Compatibility: CNMG 120408 (MIIDM) and CNMG 432 (MIIDN), 1/2 Insert Seat, Left Hand Cutting, -5 deg Lead Angle, ANSI Code: PCLNL 2020K 12HP, ISO Code: PCLNL 2020K 12HP, -6 deg Rake, Steel
ANSI Code PCLNL 2020K 12HP Catalog Number 6188424 Country of Origin SE Gross Weight Per Pack 1.0000 lb Insert Seat Size 1/2 ISO Code PCLNL 2020K 12HP Material Steel Series T-Max P Shank Type Rectangle UPC 11 69826268118 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Cutting Direction Left Hand Insert Compatibility CNMG 120408 (MIIDM) and CNMG 432 (MIIDN) Lead Angle -5 deg Overall Length 4.9212 in Rake -6 deg Shank Size 0.7874 in H x 0.7874 in W Tool Holder Style PCLNR/L..HP 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Decentral focused coolant exit with nozzles -6 deg inclination 95 deg cutting edge 0 deg maximum ramping 20 life cycle state 27.2 mm maximum overhang 5 Nm torque 25 mm W functional Lever hole clamping C - 80 deg diamond insert ANSI Code: PCLNL 2020K 12HP ISO Code: PCLNL 2020K 12HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | PCLNL 2020K 12HP |
| Catalog Number | 6188424 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.0000 lb |
| Insert Seat Size | 1/2 |
| ISO Code | PCLNL 2020K 12HP |
| Material | Steel |
| Series | T-Max P |
| Shank Type | Rectangle |
| UPC 11 | 69826268118 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNMG 120408 (MIIDM) and CNMG 432 (MIIDN) |
| Lead Angle | -5 deg |
| Overall Length | 4.9212 in |
| Rake | -6 deg |
| Shank Size | 0.7874 in H x 0.7874 in W |
| Tool Holder Style | PCLNR/L..HP |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Decentral focused coolant exit with nozzles |
| -6 deg inclination |
| 95 deg cutting edge |
| 0 deg maximum ramping |
| 20 life cycle state |
| 27.2 mm maximum overhang |
| 5 Nm torque |
| 25 mm W functional |
| Lever hole clamping |
| C - 80 deg diamond insert |
| ANSI Code: PCLNL 2020K 12HP |
| ISO Code: PCLNL 2020K 12HP |
