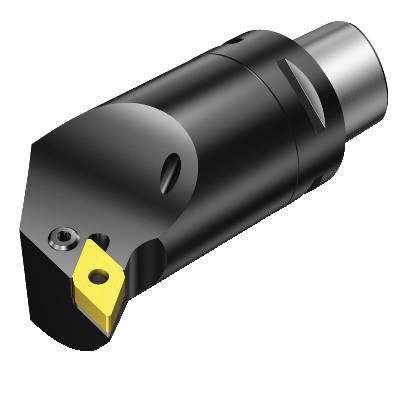

Sandvik Coromant 6188390 T-Max® P Turning Cutting Unit, 5.9055 in, 7.0866 in OAL, Left Hand, DNMG 150608 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188390 T-Max® P Turning Cutting Unit, 5.9055 in, 7.0866 in OAL, Left Hand, DNMG 150608 Insert
SKU1229745
MFGR #6188390
Your Cost: $462.20/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 5.9055 in Head Length/Projection, 7.0866 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 150608, Left Hand Cutting, 1.3779 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 5.9055 in Head Length/Projection, 7.0866 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 150608, Left Hand Cutting, 1.3779 in Center to Cutting Edge, Steel
Catalog Number 6188390 Center to Cutting Height 50mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 4.4800 lb Head Length|Projection 5.9055 in IC 0 Insert Style D-55 deg Diamond Master Insert DNMG 15 06 08 Material Steel Overall Length 7.0866 in Series T-Max® P Torque Newton Meters 5 Type -6 UPC 11 69826267109 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.3779 in Cutting Direction Left Hand Insert Compatibility DNMG 150608 Insert Holding Method Steel Internal or External Internal Number of Inserts Left Hand System Size C5 0 deg body machine side 20 life cycle state 0 deg body workpiece side 50 mm Dia body Axial concentric and radial coolant entry 10 bar coolant Lever hole clamping Axial inclined coolant exit 50 mm Dia connection 63 mm Dia minimum bore 93 deg cutting edge -10 deg inclination 129 mm L usable 27 deg ramping 5 Nm torque 1/2 in insert seat size 10 mm W usable 150 mm maximum overhang -3 deg lead -6 deg rake
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 6188390 |
| Center to Cutting Height | 50mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 4.4800 lb |
| Head Length|Projection | 5.9055 in |
| IC | 0 |
| Insert Style | D-55 deg Diamond |
| Master Insert | DNMG 15 06 08 |
| Material | Steel |
| Overall Length | 7.0866 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | -6 |
| UPC 11 | 69826267109 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.3779 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | DNMG 150608 |
| Insert Holding Method | Steel |
| Internal or External | Internal |
| Number of Inserts | Left Hand |
| System Size | C5 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 50 mm Dia body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Lever hole clamping |
| Axial inclined coolant exit |
| 50 mm Dia connection |
| 63 mm Dia minimum bore |
| 93 deg cutting edge |
| -10 deg inclination |
| 129 mm L usable |
| 27 deg ramping |
| 5 Nm torque |
| 1/2 in insert seat size |
| 10 mm W usable |
| 150 mm maximum overhang |
| -3 deg lead |
| -6 deg rake |
