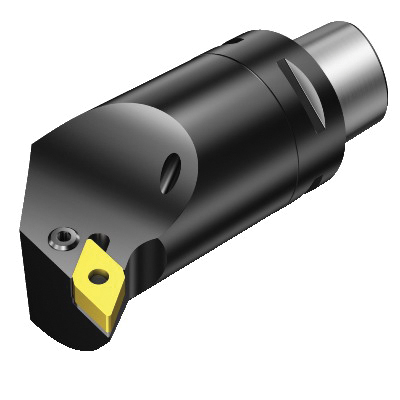

Sandvik Coromant 6188364 T-Max® P Turning Cutting Unit, 3.1496 in, 4.0944 in OAL, Left Hand, DNMG 150608 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188364 T-Max® P Turning Cutting Unit, 3.1496 in, 4.0944 in OAL, Left Hand, DNMG 150608 Insert
SKU1229283
MFGR #6188364
Your Cost: $413.55/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.1496 in Head Length/Projection, 4.0944 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 150608, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.1496 in Head Length/Projection, 4.0944 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 150608, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Catalog Number 6188364 Center to Cutting Height -6 Country of Origin SE Finish T-Max® P Gross Weight Per Pack 1.4100 lb Head Length|Projection 3.1496 in IC 0 Insert Style D-55 deg Diamond Master Insert DNMG 15 06 08 Material Steel Overall Length 4.0944 in Series T-Max® P Torque Newton Meters 5 Type T-Max® P UPC 11 69826267083 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.0629 in Cutting Direction Left Hand Insert Compatibility DNMG 150608 Insert Holding Method Steel Number of Inserts Left Hand 0 deg body machine side 20 life cycle state 0 deg body workpiece side 40 mm Dia body Axial concentric and radial coolant entry 10 bar coolant Lever hole clamping Axial inclined coolant exit 40 mm Dia connection 50 mm Dia minimum bore 93 deg cutting edge -11 deg inclination 59 mm L usable 27 deg ramping 5 Nm torque 1/2 in insert seat size 7 mm W usable 80 mm maximum overhang -3 deg lead -6 deg rake
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 6188364 |
| Center to Cutting Height | -6 |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 1.4100 lb |
| Head Length|Projection | 3.1496 in |
| IC | 0 |
| Insert Style | D-55 deg Diamond |
| Master Insert | DNMG 15 06 08 |
| Material | Steel |
| Overall Length | 4.0944 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | T-Max® P |
| UPC 11 | 69826267083 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.0629 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | DNMG 150608 |
| Insert Holding Method | Steel |
| Number of Inserts | Left Hand |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 40 mm Dia body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Lever hole clamping |
| Axial inclined coolant exit |
| 40 mm Dia connection |
| 50 mm Dia minimum bore |
| 93 deg cutting edge |
| -11 deg inclination |
| 59 mm L usable |
| 27 deg ramping |
| 5 Nm torque |
| 1/2 in insert seat size |
| 7 mm W usable |
| 80 mm maximum overhang |
| -3 deg lead |
| -6 deg rake |
