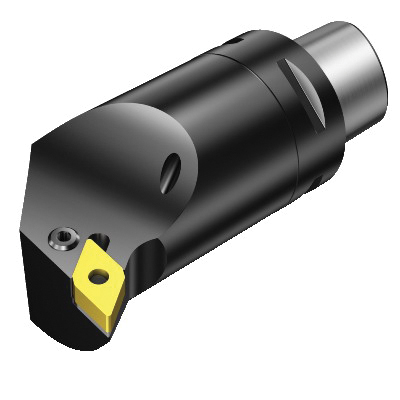

Sandvik Coromant 6188362 T-Max® P Turning Cutting Unit, 3.5433 in, 4.4881 in OAL, Left Hand, DNMG 110408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6188362 T-Max® P Turning Cutting Unit, 3.5433 in, 4.4881 in OAL, Left Hand, DNMG 110408 Insert
SKU1229281
MFGR #6188362
Your Cost: $413.55/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.5433 in Head Length/Projection, 4.4881 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 110408, Left Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.5433 in Head Length/Projection, 4.4881 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DNMG 110408, Left Hand Cutting, 0.6692 in Center to Cutting Edge, Steel
Catalog Number 6188362 Center to Cutting Height 25mm Country of Origin SE Finish 400 Gross Weight Per Pack 1.0100 lb Head Length|Projection 3.5433 in IC 0 Insert Style D-55 deg Diamond Master Insert DNMG 11 04 08 Material Steel Overall Length 4.4881 in Series T-Max® P Torque Newton Meters 2 Type 17 mm UPC 11 69826267081 Warranty -6 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 0.6692 in Cutting Direction Left Hand Insert Compatibility DNMG 110408 Insert Holding Method Steel Number of Inserts D-55 deg Diamond 0 deg body machine side 20 life cycle state 0 deg body workpiece side 25 mm Dia body Axial concentric and radial coolant entry 10 bar coolant Lever hole clamping Axial inclined coolant exit 40 mm Dia connection 32 mm Dia minimum bore 93 deg cutting edge -11 deg inclination 63 mm L usable 27 deg ramping 2 Nm torque 3/8 in insert seat size 4.5 mm W usable 90 mm maximum overhang -3 deg lead -6 deg rake
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 6188362 |
| Center to Cutting Height | 25mm |
| Country of Origin | SE |
| Finish | 400 |
| Gross Weight Per Pack | 1.0100 lb |
| Head Length|Projection | 3.5433 in |
| IC | 0 |
| Insert Style | D-55 deg Diamond |
| Master Insert | DNMG 11 04 08 |
| Material | Steel |
| Overall Length | 4.4881 in |
| Series | T-Max® P |
| Torque Newton Meters | 2 |
| Type | 17 mm |
| UPC 11 | 69826267081 |
| Warranty | -6 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 0.6692 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | DNMG 110408 |
| Insert Holding Method | Steel |
| Number of Inserts | D-55 deg Diamond |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 25 mm Dia body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Lever hole clamping |
| Axial inclined coolant exit |
| 40 mm Dia connection |
| 32 mm Dia minimum bore |
| 93 deg cutting edge |
| -11 deg inclination |
| 63 mm L usable |
| 27 deg ramping |
| 2 Nm torque |
| 3/8 in insert seat size |
| 4.5 mm W usable |
| 90 mm maximum overhang |
| -3 deg lead |
| -6 deg rake |
