Sandvik Coromant

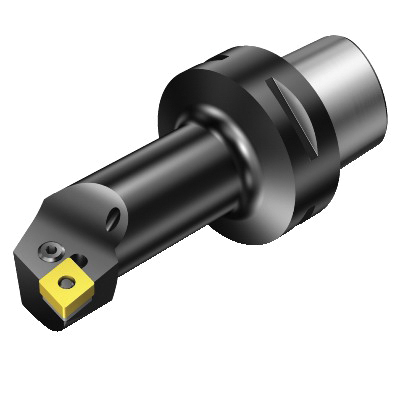

Sandvik Coromant 6188361 T-Max® P Turning Cutting Unit, 4.7244 in, 5.6692 in OAL, Right Hand, CNMG 120408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6188361 T-Max® P Turning Cutting Unit, 4.7244 in, 5.6692 in OAL, Right Hand, CNMG 120408 Insert
SKU1229254
MFGR #6188361
$/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.7244 in Head Length/Projection, 5.6692 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Right Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.7244 in Head Length/Projection, 5.6692 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Right Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-PCLNR-27120-12M1 Catalog Number 6188361 Center to Cutting Height 40mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 2.2400 lb Head Length|Projection 4.7244 in IC 0 Includes -6 Insert Style C-80 deg Diamond Item Group 410 Master Insert CNMG 12 04 08 Material Steel Overall Length 5.6692 in Series T-Max® P Torque Newton Meters 5 Type T-Max® P UPC 11 69826267080 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.0629 in Cutting Direction Right Hand Insert Compatibility CNMG 120408 Insert Holding Method Steel Number of Inserts C-80 deg Diamond 0 deg body machine side 20 life cycle state 0 deg body workpiece side 40 mm Dia body Axial concentric and radial coolant entry 10 bar coolant Lever hole clamping Axial inclined coolant exit 40 mm Dia connection 50 mm Dia minimum bore 95 deg cutting edge -10 deg inclination 99 mm L usable 0 deg ramping 5 Nm torque 1/2 in insert seat size 120 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C4-PCLNR-27120-12M1 |
| Catalog Number | 6188361 |
| Center to Cutting Height | 40mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 2.2400 lb |
| Head Length|Projection | 4.7244 in |
| IC | 0 |
| Includes | -6 |
| Insert Style | C-80 deg Diamond |
| Item Group | 410 |
| Master Insert | CNMG 12 04 08 |
| Material | Steel |
| Overall Length | 5.6692 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | T-Max® P |
| UPC 11 | 69826267080 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.0629 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | CNMG 120408 |
| Insert Holding Method | Steel |
| Number of Inserts | C-80 deg Diamond |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 40 mm Dia body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Lever hole clamping |
| Axial inclined coolant exit |
| 40 mm Dia connection |
| 50 mm Dia minimum bore |
| 95 deg cutting edge |
| -10 deg inclination |
| 99 mm L usable |
| 0 deg ramping |
| 5 Nm torque |
| 1/2 in insert seat size |
| 120 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
