Sandvik Coromant

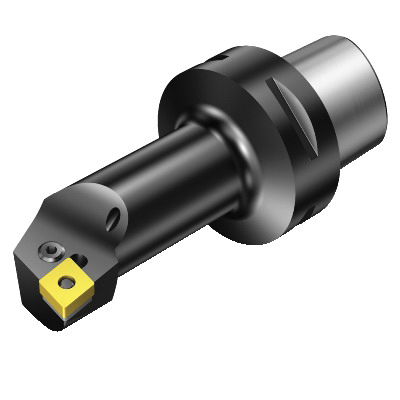

Sandvik Coromant 6188355 T-Max® P Turning Cutting Unit, 3.1496 in, 4.0944 in OAL, Left Hand, CNMG 120408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6188355 T-Max® P Turning Cutting Unit, 3.1496 in, 4.0944 in OAL, Left Hand, CNMG 120408 Insert
SKU1229264
MFGR #6188355
Your Cost: $540.09/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.1496 in Head Length/Projection, 4.0944 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 3.1496 in Head Length/Projection, 4.0944 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 120408, Left Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-PCLNL-27080-12M1 Catalog Number 6188355 Center to Cutting Height 40mm Country of Origin SE Finish T-Max® P Gross Weight Per Pack 1.4600 lb Head Length|Projection 3.1496 in IC 0 Insert Style C-80 deg Diamond Item Group 410 Master Insert CNMG 12 04 08 Material Steel Overall Length 4.0944 in Series T-Max® P Torque Newton Meters 5 Type C-80 deg Diamond UPC 11 69826267074 Warranty -6 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.0629 in Cutting Direction Left Hand Insert Compatibility CNMG 120408 Insert Holding Method 400 Number of Inserts T-Max® P 0 deg body machine side 20 life cycle state 0 deg body workpiece side 40 mm Dia body Axial concentric and radial coolant entry 10 bar coolant Lever hole clamping Axial inclined coolant exit 40 mm Dia connection 50 mm Dia minimum bore 95 deg cutting edge -10 deg inclination 59 mm L usable 0 deg ramping 5 Nm torque 1/2 in insert seat size 80 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C4-PCLNL-27080-12M1 |
| Catalog Number | 6188355 |
| Center to Cutting Height | 40mm |
| Country of Origin | SE |
| Finish | T-Max® P |
| Gross Weight Per Pack | 1.4600 lb |
| Head Length|Projection | 3.1496 in |
| IC | 0 |
| Insert Style | C-80 deg Diamond |
| Item Group | 410 |
| Master Insert | CNMG 12 04 08 |
| Material | Steel |
| Overall Length | 4.0944 in |
| Series | T-Max® P |
| Torque Newton Meters | 5 |
| Type | C-80 deg Diamond |
| UPC 11 | 69826267074 |
| Warranty | -6 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.0629 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | CNMG 120408 |
| Insert Holding Method | 400 |
| Number of Inserts | T-Max® P |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| 40 mm Dia body |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Lever hole clamping |
| Axial inclined coolant exit |
| 40 mm Dia connection |
| 50 mm Dia minimum bore |
| 95 deg cutting edge |
| -10 deg inclination |
| 59 mm L usable |
| 0 deg ramping |
| 5 Nm torque |
| 1/2 in insert seat size |
| 80 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
