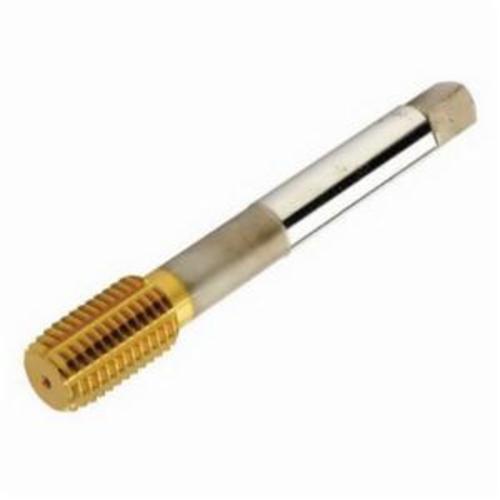

Sandvik Coromant 6181753 E892 CoroTap™ 400 Forming Tap, Imperial, #4-40, UNC, 3 Flutes, 2B Class of Fit, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6181753 E892 CoroTap™ 400 Forming Tap, Imperial, #4-40, UNC, 3 Flutes, 2B Class of Fit, Right Hand
SKU1252055
MFGR #6181753
Your Cost: $80.67/ea
List: Sandvik Coromant Forming Tap, Series: E892 CoroTap™ 400, Measurement System: Imperial, #4-40, UNC, Semi-Bottoming Chamfer, 0.4329 in Thread Length, 2.2047 in Overall Length, 3 Flutes, Right Hand Cutting, Class of Fit: 2B, 0.1409 in Shank Dia, HSS-PM, PVD Coated
Sandvik Coromant Forming Tap, Series: E892 CoroTap™ 400, Measurement System: Imperial, #4-40, UNC, Semi-Bottoming Chamfer, 0.4329 in Thread Length, 2.2047 in Overall Length, 3 Flutes, Right Hand Cutting, Class of Fit: 2B, 0.1409 in Shank Dia, HSS-PM, PVD Coated
Alternate Catalog Number E8924-40 Catalog Number 6181753 Chamfer Type Semi-Bottoming Class of Fit 2B Country of Origin DE Cutting Direction Right Hand Drill Size N39 in Finish Coating PVD Coated Gross Weight Per Pack 0.0100 lb Item Group 781 Material HSS-PM Measurement System Imperial Number of Flutes 3 Overall Length 2.2047 in Series E892 CoroTap™ 400 Shank Diameter 0.1409 in Shank Length 40 Size #4-40 Square 0 Square Size 56mm in Standards ANSI/DIN Specified Tap Drill Size 0.3543 Thread Length 0.4329 in Thread Standard UNC Type 0.433 in UPC 11 69826259564 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Thread Size #4-40 Without coolant entry 2 mm neck diameter 15.471 mm usable length 2.55 mm pre-machined hole diameter 2.8448 mm thread diameter M, N, P and S material grade Thread back taper property Released life cycle state Taps that form the thread instead of cutting A chip-free solution All materials not suitable since there is need of certain ductility Recommended tensile strength limit is 1200 N/sq-mm For through or blind holes applications 3XD cutting depth 0.141 x 0.11 in tap shank adaptive interface machine direction C2-3 chamfer
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | E8924-40 |
| Catalog Number | 6181753 |
| Chamfer Type | Semi-Bottoming |
| Class of Fit | 2B |
| Country of Origin | DE |
| Cutting Direction | Right Hand |
| Drill Size | N39 in |
| Finish Coating | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Item Group | 781 |
| Material | HSS-PM |
| Measurement System | Imperial |
| Number of Flutes | 3 |
| Overall Length | 2.2047 in |
| Series | E892 CoroTap™ 400 |
| Shank Diameter | 0.1409 in |
| Shank Length | 40 |
| Size | #4-40 |
| Square | 0 |
| Square Size | 56mm in |
| Standards | ANSI/DIN Specified |
| Tap Drill Size | 0.3543 |
| Thread Length | 0.4329 in |
| Thread Standard | UNC |
| Type | 0.433 in |
| UPC 11 | 69826259564 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Thread Size | #4-40 |
| Without coolant entry |
| 2 mm neck diameter |
| 15.471 mm usable length |
| 2.55 mm pre-machined hole diameter |
| 2.8448 mm thread diameter |
| M, N, P and S material grade |
| Thread back taper property |
| Released life cycle state |
| Taps that form the thread instead of cutting |
| A chip-free solution |
| All materials not suitable since there is need of certain ductility |
| Recommended tensile strength limit is 1200 N/sq-mm |
| For through or blind holes applications |
| 3XD cutting depth |
| 0.141 x 0.11 in tap shank adaptive interface machine direction |
| C2-3 chamfer |
