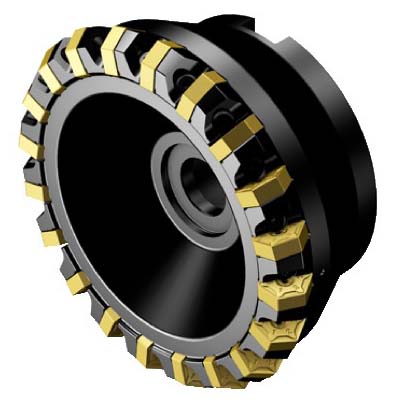

Sandvik Coromant 6169935 CoroMill® S-60 Face Milling Cutter, 4.9212 in Cutting, 1.5748 in Shank, 2.4803 in OAL, S-60..Qxx Insert, 0.2362 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6169935 CoroMill® S-60 Face Milling Cutter, 4.9212 in Cutting, 1.5748 in Shank, 2.4803 in OAL, S-60..Qxx Insert, 0.2362 in Max Depth of Cut
SKU1247649
MFGR #6169935
Your Cost: $2,852.07/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® S-60, 4.9212 in Cutting Dia, 2.4803 in Overall Length, 0.2362 in Maximum Depth of Cut, S-60..Qxx Insert, 20 Inserts, Insert Compatibility: HNEF0905..N, 1.5748 in Shank Dia, Right Hand Cutting, 60 deg Cutting Angle, ANSI Code: S-60-125Q40-09HX, ISO Code: S-60-125Q40-09HX, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® S-60, 4.9212 in Cutting Dia, 2.4803 in Overall Length, 0.2362 in Maximum Depth of Cut, S-60..Qxx Insert, 20 Inserts, Insert Compatibility: HNEF0905..N, 1.5748 in Shank Dia, Right Hand Cutting, 60 deg Cutting Angle, ANSI Code: S-60-125Q40-09HX, ISO Code: S-60-125Q40-09HX, Steel
Alternate Catalog Number S-60-125Q40-09HX ANSI Code S-60-125Q40-09HX Catalog Number 6169935 Country of Origin FR Gross Weight Per Pack 10.0800 lb ISO Code S-60-125Q40-09HX Item Group 450 Lead Angle 60 ° Material Steel Series CoroMill® S-60 Standards ISO 6462:2011 UPC 11 69826267010 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 1.5748 in Cutting Angle 60 ° Cutting Diameter 4.9212 in Cutting Direction Right Hand Insert Compatibility HNEF0905..N Insert Style S-60..Qxx Maximum Depth of Cut 0.2362 in Number of Inserts 20 Overall Length 2.4803 in Shank Diameter 1.5748 in Through Coolant Yes Axial concentric coolant entry Cutter retaining screw adaptive interface 40 - 60 deg insert screw clamping interface 134 mm Dia maximum cutting 16.4 mm W keyway 63 mm overhang 0 deg maximum ramping 8800 r/min 3 Nm torque 20 life cycle state Cutter retaining screw adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | S-60-125Q40-09HX |
| ANSI Code | S-60-125Q40-09HX |
| Catalog Number | 6169935 |
| Country of Origin | FR |
| Gross Weight Per Pack | 10.0800 lb |
| ISO Code | S-60-125Q40-09HX |
| Item Group | 450 |
| Lead Angle | 60 ° |
| Material | Steel |
| Series | CoroMill® S-60 |
| Standards | ISO 6462:2011 |
| UPC 11 | 69826267010 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 1.5748 in |
| Cutting Angle | 60 ° |
| Cutting Diameter | 4.9212 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | HNEF0905..N |
| Insert Style | S-60..Qxx |
| Maximum Depth of Cut | 0.2362 in |
| Number of Inserts | 20 |
| Overall Length | 2.4803 in |
| Shank Diameter | 1.5748 in |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| Cutter retaining screw adaptive interface |
| 40 - 60 deg insert screw clamping interface |
| 134 mm Dia maximum cutting |
| 16.4 mm W keyway |
| 63 mm overhang |
| 0 deg maximum ramping |
| 8800 r/min |
| 3 Nm torque |
| 20 life cycle state |
| Cutter retaining screw adaptive interface |
