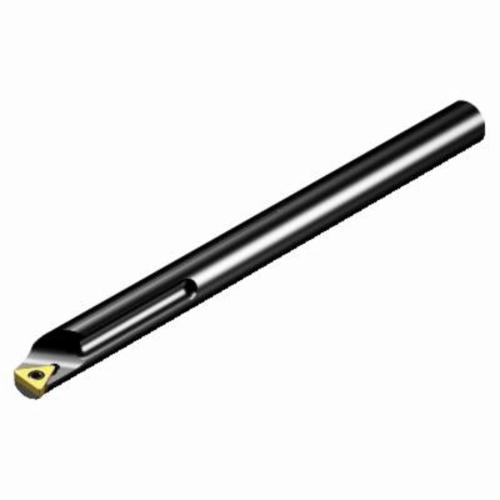

Sandvik Coromant 6169468 CoroTurn® 107 Indexable Boring Bar, 0.2362 in Min, 3.937 in OAL, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6169468 CoroTurn® 107 Indexable Boring Bar, 0.2362 in Min, 3.937 in OAL, Left Hand
SKU1230064
MFGR #6169468
$/ea
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 0.2362 in Minimum Bore Dia, 1.1811 in Maximum Bore Depth, 3.937 in Overall Length, 0.1968 in Shank Dia, Cylindrical Shank, Left Hand Cutting, Insert Compatibility: TCEX 05 01 00 (MIIDM), TCEX 1(1)00 (MIIDN), Triangle Insert, 0.1141 in Width Offset, Carbide
Sandvik Coromant Indexable Boring Bar, Series: CoroTurn® 107, 0.2362 in Minimum Bore Dia, 1.1811 in Maximum Bore Depth, 3.937 in Overall Length, 0.1968 in Shank Dia, Cylindrical Shank, Left Hand Cutting, Insert Compatibility: TCEX 05 01 00 (MIIDM), TCEX 1(1)00 (MIIDN), Triangle Insert, 0.1141 in Width Offset, Carbide
Alternate Catalog Number E05H-STUCL 05-GR Catalog Number 6169468 Country of Origin US Cutting Direction Left Hand Finish Indexable Gross Weight Per Pack 0.0500 lb Includes 2.9 mm Inscribed Circle 1/8 Insert Screw 100 mm Insert Thickness CoroTurn® 107 Item Group 210 Maximum Bore Diameter 6 mm Overall Length 3.937 in Series CoroTurn® 107 Shank Type Cylindrical Toolholder Type E..STUCL..-GR UPC 11 69826264291 Width Offset 0.1141 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hand of Holder Left Insert Compatibility TCEX 05 01 00 (MIIDM), TCEX 1(1)00 (MIIDN) Insert Shape Triangle Material Carbide Maximum Bore Depth 1.1811 in Minimum Bore Diameter 0.2362 in Shank Diameter 0.1968 in Type 30 mm 0 deg body machine side 0 deg body workpiece side Axial concentric coolant entry Axial inclined coolant exit 0 deg orthogonal rake 145.038 lbf/sq-in coolant pressure 93 deg cutting edge 0 deg inclination 20 life cycle state Coolant through -3 deg lead 0 deg maximum ramping 0.4 Nm torque 40 - 60 deg insert screw clamping 1/8 in insert seat ANSI Code: E05H-STUCL 05-GR ISO Code: E05H-STUCL 05-GR
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | E05H-STUCL 05-GR |
| Catalog Number | 6169468 |
| Country of Origin | US |
| Cutting Direction | Left Hand |
| Finish | Indexable |
| Gross Weight Per Pack | 0.0500 lb |
| Includes | 2.9 mm |
| Inscribed Circle | 1/8 |
| Insert Screw | 100 mm |
| Insert Thickness | CoroTurn® 107 |
| Item Group | 210 |
| Maximum Bore Diameter | 6 mm |
| Overall Length | 3.937 in |
| Series | CoroTurn® 107 |
| Shank Type | Cylindrical |
| Toolholder Type | E..STUCL..-GR |
| UPC 11 | 69826264291 |
| Width Offset | 0.1141 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hand of Holder | Left |
| Insert Compatibility | TCEX 05 01 00 (MIIDM), TCEX 1(1)00 (MIIDN) |
| Insert Shape | Triangle |
| Material | Carbide |
| Maximum Bore Depth | 1.1811 in |
| Minimum Bore Diameter | 0.2362 in |
| Shank Diameter | 0.1968 in |
| Type | 30 mm |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 0 deg orthogonal rake |
| 145.038 lbf/sq-in coolant pressure |
| 93 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| Coolant through |
| -3 deg lead |
| 0 deg maximum ramping |
| 0.4 Nm torque |
| 40 - 60 deg insert screw clamping |
| 1/8 in insert seat |
| ANSI Code: E05H-STUCL 05-GR |
| ISO Code: E05H-STUCL 05-GR |
