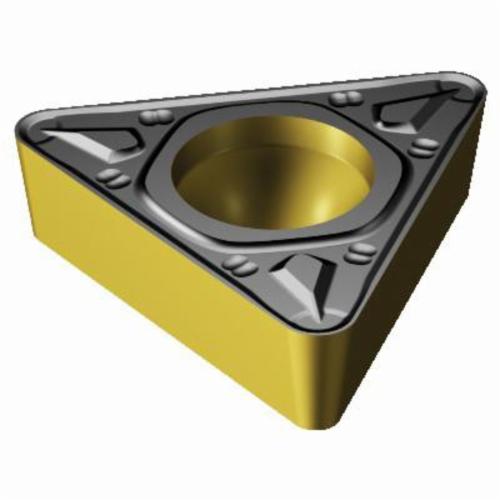

Sandvik Coromant 6162332 CoroTurn® 107 Basic Shape Positive Turning Insert, TCMT 223-KR 3210, T-Triangle, TCMT Insert
TCMT Turning Inserts
1233854
MFG #: 6162332
Sandvik Coromant
14.04000
/ ea
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, TCMT Insert, T-Triangle, 3 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4228 in Length, KR Chipbreaker, 0.0468 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: TCMT 223-KR 3210, ISO Code: TCMT 11 03 12-KR 3210, 60 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
- Features
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.12 - 0.36 mm/r cutting feed |
| 20 life cycle state |
