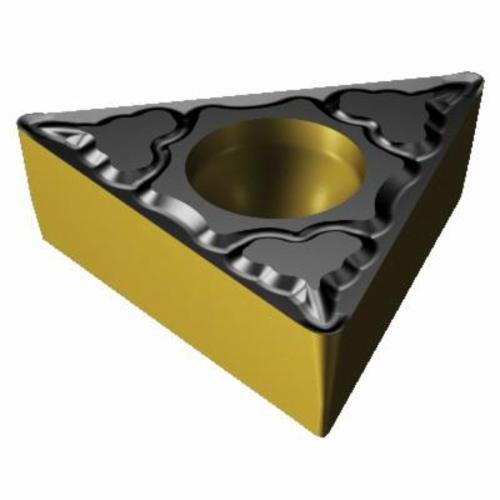

Sandvik Coromant 6162327 CoroTurn® 107 Basic Shape Positive Turning Insert, TCMT 1.8(1.5)1-KM 3210, T-Triangle, TCMT Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6162327 CoroTurn® 107 Basic Shape Positive Turning Insert, TCMT 1.8(1.5)1-KM 3210, T-Triangle, TCMT Insert
SKU1234218
MFGR #6162327
Your Cost: $12.95/ea
List: Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, TCMT Insert, T-Triangle, 2.3 mm Maximum Depth of Cut, 0.225 in Inscribed Circle, 0.0937 in Thickness, 0.3688 in Length, KM Chipbreaker, 0.0156 in Corner Radius, 0.0984 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: TCMT 1.8(1.5)1-KM 3210, ISO Code: TCMT 09 02 04-KM 3210, 60 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, TCMT Insert, T-Triangle, 2.3 mm Maximum Depth of Cut, 0.225 in Inscribed Circle, 0.0937 in Thickness, 0.3688 in Length, KM Chipbreaker, 0.0156 in Corner Radius, 0.0984 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: TCMT 1.8(1.5)1-KM 3210, ISO Code: TCMT 09 02 04-KM 3210, 60 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number TCMT 1.8(1.5)1-KM 3210 ANSI Code TCMT 1.8(1.5)1-KM 3210 Catalog Number 6162327 Corner Radius 0.0156 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 1 lb Hand of Insert Neutral Hole Diameter 0.0984 in Included Angle 60 deg ISO Code TCMT 09 02 04-KM 3210 Item Group 120 Length 0.3688 in Relief Angle 7 deg Series CoroTurn® 107 Thickness 0.0937 in Type Basic Shape Positive UPC 11 69826264452 Width KM Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Inscribed Circle 0.225 in Insert Size T - Triangle Insert Style TCMT Manufacturer's Grade 3210 Material Carbide Material Grade K Maximum Depth of Cut 2.3 mm Shape T-Triangle 40 - 60 deg countersunk hole and non-flat surface clamping interface 1-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.06 - 0.17 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | TCMT 1.8(1.5)1-KM 3210 |
| ANSI Code | TCMT 1.8(1.5)1-KM 3210 |
| Catalog Number | 6162327 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.0984 in |
| Included Angle | 60 deg |
| ISO Code | TCMT 09 02 04-KM 3210 |
| Item Group | 120 |
| Length | 0.3688 in |
| Relief Angle | 7 deg |
| Series | CoroTurn® 107 |
| Thickness | 0.0937 in |
| Type | Basic Shape Positive |
| UPC 11 | 69826264452 |
| Width | KM |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Inscribed Circle | 0.225 in |
| Insert Size | T - Triangle |
| Insert Style | TCMT |
| Manufacturer's Grade | 3210 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 2.3 mm |
| Shape | T-Triangle |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.06 - 0.17 mm/r cutting feed |
| 20 life cycle state |
