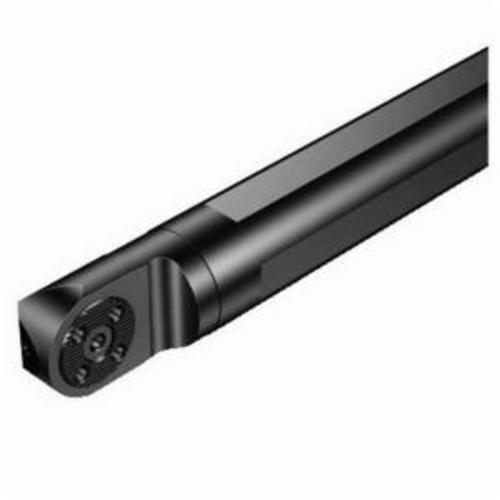

Sandvik Coromant 6161897 Cylindrical Shank with Flat to CoroTurn® SL Boring Bar Adapter, 8.6614 in OAL, Neutral
Custom_Product_Images_Illustration
Sandvik Coromant 6161897 Cylindrical Shank with Flat to CoroTurn® SL Boring Bar Adapter, 8.6614 in OAL, Neutral
SKU1246608
MFGR #6161897
Your Cost: $934.34/ea
Sandvik Coromant Boring Bar Adapter, Cylindrical Shank with Flat to CoroTurn® SL, 8.6614 in Overall Length, 1 in Shank Dia, Cylindrical with 3-Flats Shank, Neutral Cutting, Steel
Sandvik Coromant Boring Bar Adapter, Cylindrical Shank with Flat to CoroTurn® SL, 8.6614 in Overall Length, 1 in Shank Dia, Cylindrical with 3-Flats Shank, Neutral Cutting, Steel
Alternate Catalog Number SL-D16-32NF ANSI Code SL-D16-32NF Body Diameter Workpiece Side 1 in Catalog Number 6161897 Country of Origin SE Gage Length 4 in Gross Weight Per Pack 3.9700 lb ISO Code SL-D16-32NF Item Group 480 Material Steel Overall Length 8.661 in Shank Diameter Workpiece Side 1.26 in UPC 11 69826268569 Usable Length 4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Connection Type Cylindrical Shank with Flat x CoroTurn® SL Shank Diameter 1 in The ingenious Serration Lock (SL) interface is extremely robust and lets you create a wide range of tool combinations from a small inventory of adapters and cutting heads|The high precision nozzles on the cutting heads put coolant exactly where you need it, for good chip breaking and long tool life|Tool wear is mainly on the exchangeable cutting head, extending the life of the adapter 90 deg body workpiece side 25.4 mm Dia body 0 deg body half taper Axial concentric coolant entry 70 bar coolant Axial concentric coolant exit 32 mm Dia workpiece side connection 23 mm H shank 163 mm L body 20 life cycle state 203.2 mm L functional 220 mm L protruding 101.6 mm L usable 34 mm H 50 - 101.6 mm overhang SL-D..NF tool style 5.9 mm W functiona ANSI Code: SL-D16-32NF ISO Code: SL-D16-32NF
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SL-D16-32NF |
| ANSI Code | SL-D16-32NF |
| Body Diameter Workpiece Side | 1 in |
| Catalog Number | 6161897 |
| Country of Origin | SE |
| Gage Length | 4 in |
| Gross Weight Per Pack | 3.9700 lb |
| ISO Code | SL-D16-32NF |
| Item Group | 480 |
| Material | Steel |
| Overall Length | 8.661 in |
| Shank Diameter Workpiece Side | 1.26 in |
| UPC 11 | 69826268569 |
| Usable Length | 4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Connection Type | Cylindrical Shank with Flat x CoroTurn® SL |
| Shank Diameter | 1 in |
| The ingenious Serration Lock (SL) interface is extremely robust and lets you create a wide range of tool combinations from a small inventory of adapters and cutting heads|The high precision nozzles on the cutting heads put coolant exactly where you need it, for good chip breaking and long tool life|Tool wear is mainly on the exchangeable cutting head, extending the life of the adapter |
| 90 deg body workpiece side |
| 25.4 mm Dia body |
| 0 deg body half taper |
| Axial concentric coolant entry |
| 70 bar coolant |
| Axial concentric coolant exit |
| 32 mm Dia workpiece side connection |
| 23 mm H shank |
| 163 mm L body |
| 20 life cycle state |
| 203.2 mm L functional |
| 220 mm L protruding |
| 101.6 mm L usable |
| 34 mm H |
| 50 - 101.6 mm overhang |
| SL-D..NF tool style |
| 5.9 mm W functiona |
| ANSI Code: SL-D16-32NF |
| ISO Code: SL-D16-32NF |
