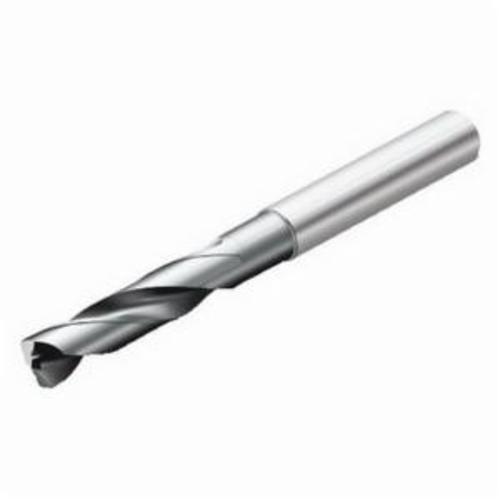

Sandvik Coromant 6151104 CoroDrill® 861 Jobber Drill, 0.3751 in Dia x 3.5039 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant 6151104 CoroDrill® 861 Jobber Drill, 0.3751 in Dia x 3.5039 in L, Carbide, PVD
SKU1236138
MFGR #6151104
Your Cost: $307.71/ea
Sandvik Coromant Jobber Drill, Series: CoroDrill® 861, 0.3751 in Dia, 3.5039 in Overall Length, 1.1692 in Cutting Depth, 2 Flutes, SSK Flute, 1.8503 in Flute Length, 0.3937 in Shank, Cylindrical Shank, 150 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Sandvik Coromant Jobber Drill, Series: CoroDrill® 861, 0.3751 in Dia, 3.5039 in Overall Length, 1.1692 in Cutting Depth, 2 Flutes, SSK Flute, 1.8503 in Flute Length, 0.3937 in Shank, Cylindrical Shank, 150 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Alternate Catalog Number 861.1-0953-029A1-GP GC34 Catalog Number 6151104 Country of Origin FR Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 3/8 in Drill Dia Measurement System Imperial Drill Diameter Measurement System Imperial Flute Length 1.85 in Flute Type SSK Gross Weight Per Pack 0.1700 lb Item Group 721 Number of Flutes 2 Overall Length 3.504 in Point Angle 150 ° Point Type Split Series CoroDrill® 861 Shank Size 0.394 in Shank Type Cylindrical Standards DIN 6535 HA/6537 K UPC 11 69826265745 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Applicable Materials Steel, Stainless Steel, Cast Iron and Non-Ferrous Metal Finish PVD TiAlN Coated Material Solid Carbide ACM (advanced chip Management) flute geometry ensures sufficient flute space along the whole length of the tool and encourages small and manageable chips|Unique surface treatment provides a very smooth surface in the flutes to decrease torque|High speeds and feeds allow greater productivity to reduce cost per hole|Accurate deep holes to depths of up to 30 × drill diameter, without pecking Axial concentric coolant entry on circle Axial concentric coolant exit on circle 20 bar coolant EFW cutting feed 28.813 deg helix flute 19.601 deg orthogonal rake GC34 manufacturer grade 87.9 mm L functional 40 mm L clamping 3 regrinds 1.1 mm L point 3 mm L regrind 10026 r/min H6 connection diameter tolerance H9 achievable hole tolerance 861.1..A1-GP tool style 3.116 usable length diameter ratio K, M, N, P material grade 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 861.1-0953-029A1-GP GC34 |
| Catalog Number | 6151104 |
| Country of Origin | FR |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 3/8 in |
| Drill Dia Measurement System | Imperial |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 1.85 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.1700 lb |
| Item Group | 721 |
| Number of Flutes | 2 |
| Overall Length | 3.504 in |
| Point Angle | 150 ° |
| Point Type | Split |
| Series | CoroDrill® 861 |
| Shank Size | 0.394 in |
| Shank Type | Cylindrical |
| Standards | DIN 6535 HA/6537 K |
| UPC 11 | 69826265745 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Applicable Materials | Steel, Stainless Steel, Cast Iron and Non-Ferrous Metal |
| Finish | PVD TiAlN Coated |
| Material | Solid Carbide |
| ACM (advanced chip Management) flute geometry ensures sufficient flute space along the whole length of the tool and encourages small and manageable chips|Unique surface treatment provides a very smooth surface in the flutes to decrease torque|High speeds and feeds allow greater productivity to reduce cost per hole|Accurate deep holes to depths of up to 30 × drill diameter, without pecking |
| Axial concentric coolant entry on circle |
| Axial concentric coolant exit on circle |
| 20 bar coolant |
| EFW cutting feed |
| 28.813 deg helix flute |
| 19.601 deg orthogonal rake |
| GC34 manufacturer grade |
| 87.9 mm L functional |
| 40 mm L clamping |
| 3 regrinds |
| 1.1 mm L point |
| 3 mm L regrind |
| 10026 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 861.1..A1-GP tool style |
| 3.116 usable length diameter ratio |
| K, M, N, P material grade |
| 20 life cycle state |
