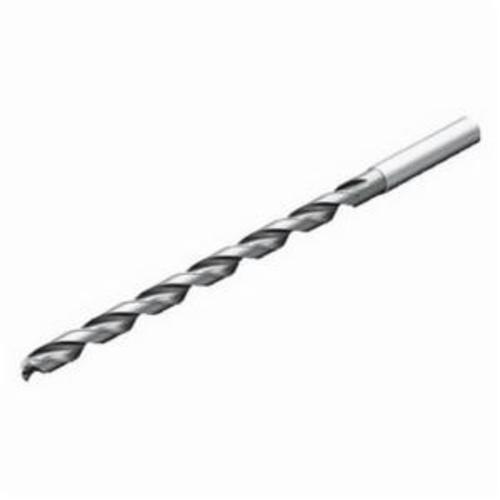

Sandvik Coromant 6151083 CoroDrill® 861 Extra Long Jobber Drill, 0.3228 in Dia x 7.559 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant 6151083 CoroDrill® 861 Extra Long Jobber Drill, 0.3228 in Dia x 7.559 in L, Carbide, PVD
SKU1236142
MFGR #6151083
Your Cost: $559.04/ea
Sandvik Coromant Jobber Drill, Extra Long, Series: CoroDrill® 861, 0.3228 in Dia, 7.559 in Overall Length, 3.9252 in Cutting Depth, 2 Flutes, SSK Flute, 5.748 in Flute Length, 0.3937 in Shank, Cylindrical Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Sandvik Coromant Jobber Drill, Extra Long, Series: CoroDrill® 861, 0.3228 in Dia, 7.559 in Overall Length, 3.9252 in Cutting Depth, 2 Flutes, SSK Flute, 5.748 in Flute Length, 0.3937 in Shank, Cylindrical Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Alternate Catalog Number 861.1-0820-098A1-GM GC34 Catalog Number 6151083 Country of Origin FR Cutting Depth 3.925 in Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 0.323 in Finish PVD/TiAlN Coated Flute Length 5.748 in Flute Type Spiral Gross Weight Per Pack 0.2400 lb Item Group 721 Number of Flutes 2 Point Angle 140 ° Point Type Split Series CoroDrill® 861 Shank Size 0.394 in Shank Type Cylindrical Specs Met DIN 1835 A, DIN 6535 HA Standards DIN1835-A/DIN6535-HA Through Coolant Yes UPC 11 69826265717 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Applicable Materials Steel, Stainless Steel, Cast Iron and Non-Ferrous Metals Drill Point Length 0.051 in Material Solid Carbide Overall Length 7.559 in 0 deg body half taper Axial concentric coolant entry on circle Axial concentric coolant exit on circle 20 bar coolant EFW cutting feed 29.249 deg helix flute 19.911 deg orthogonal rake GC34 manufacturer grade 190.7 mm L functional 40 mm L clamping 3 regrinds 1.3 mm L point 3 mm L regrind 12577 r/min H6 connection diameter tolerance H9 achievable hole tolerance 861.1..A1-GM (12xD) tool style 12.158 usable length diameter ratio K, M, N, P material grade 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 861.1-0820-098A1-GM GC34 |
| Catalog Number | 6151083 |
| Country of Origin | FR |
| Cutting Depth | 3.925 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 0.323 in |
| Finish | PVD/TiAlN Coated |
| Flute Length | 5.748 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.2400 lb |
| Item Group | 721 |
| Number of Flutes | 2 |
| Point Angle | 140 ° |
| Point Type | Split |
| Series | CoroDrill® 861 |
| Shank Size | 0.394 in |
| Shank Type | Cylindrical |
| Specs Met | DIN 1835 A, DIN 6535 HA |
| Standards | DIN1835-A/DIN6535-HA |
| Through Coolant | Yes |
| UPC 11 | 69826265717 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Applicable Materials | Steel, Stainless Steel, Cast Iron and Non-Ferrous Metals |
| Drill Point Length | 0.051 in |
| Material | Solid Carbide |
| Overall Length | 7.559 in |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| Axial concentric coolant exit on circle |
| 20 bar coolant |
| EFW cutting feed |
| 29.249 deg helix flute |
| 19.911 deg orthogonal rake |
| GC34 manufacturer grade |
| 190.7 mm L functional |
| 40 mm L clamping |
| 3 regrinds |
| 1.3 mm L point |
| 3 mm L regrind |
| 12577 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 861.1..A1-GM (12xD) tool style |
| 12.158 usable length diameter ratio |
| K, M, N, P material grade |
| 20 life cycle state |
