Sandvik Coromant

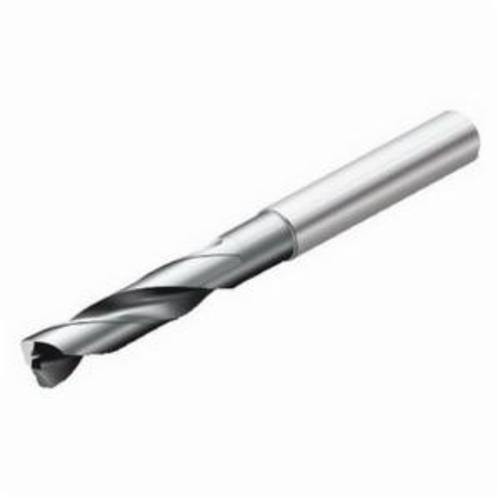

Sandvik Coromant 6151063 CoroDrill® 861 Jobber Drill, 0.2952 in Dia x 3.1102 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6151063 CoroDrill® 861 Jobber Drill, 0.2952 in Dia x 3.1102 in L, Carbide, PVD
SKU1161826
MFGR #6151063
Your Cost: $271.12/ea
Sandvik Coromant Jobber Drill, Series: CoroDrill® 861, 0.2952 in Dia, 3.1102 in Overall Length, 0.9212 in Cutting Depth, 2 Flutes, SSK Flute, 1.6141 in Flute Length, 0.3149 in Shank, Cylindrical Shank, 150 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Sandvik Coromant Jobber Drill, Series: CoroDrill® 861, 0.2952 in Dia, 3.1102 in Overall Length, 0.9212 in Cutting Depth, 2 Flutes, SSK Flute, 1.6141 in Flute Length, 0.3149 in Shank, Cylindrical Shank, 150 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Alternate Catalog Number 861.1-0750-023A1-GP GC34 Catalog Number 6151063 Country of Origin FR Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 0.295 in Drill Dia Measurement System Imperial Drill Diameter Measurement System Imperial Flute Length 1.614 in Flute Type SSK Gross Weight Per Pack 0.1000 lb Item Group 721 Number of Flutes 2 Overall Length 3.11 in Point Angle 150 ° Point Type Split Series CoroDrill® 861 Shank Size 0.315 in Shank Type Cylindrical Standards DIN 6535 HA/6537 K UPC 11 69826265685 UPC 12 69826265685 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Applicable Materials Steel, Stainless Steel, Cast Iron and Non-Ferrous Metal Finish PVD TiAlN Coated Material Solid Carbide ACM (advanced chip Management) flute geometry ensures sufficient flute space along the whole length of the tool and encourages small and manageable chips|Unique surface treatment provides a very smooth surface in the flutes to decrease torque|High speeds and feeds allow greater productivity to reduce cost per hole|Accurate deep holes to depths of up to 30 × drill diameter, without pecking Axial concentric coolant entry on circle Axial concentric coolant exit on circle 20 bar coolant EFW cutting feed 28.442 deg helix flute 19.338 deg orthogonal rake GC34 manufacturer grade 78.1 mm L functional 36 mm L clamping 3 regrinds 0.9 mm L point 3 mm L regrind 12732 r/min H6 connection diameter tolerance H9 achievable hole tolerance 861.1..A1-GP tool style 3.12 usable length diameter ratio K, M, N, P material grade 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 861.1-0750-023A1-GP GC34 |
| Catalog Number | 6151063 |
| Country of Origin | FR |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 0.295 in |
| Drill Dia Measurement System | Imperial |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 1.614 in |
| Flute Type | SSK |
| Gross Weight Per Pack | 0.1000 lb |
| Item Group | 721 |
| Number of Flutes | 2 |
| Overall Length | 3.11 in |
| Point Angle | 150 ° |
| Point Type | Split |
| Series | CoroDrill® 861 |
| Shank Size | 0.315 in |
| Shank Type | Cylindrical |
| Standards | DIN 6535 HA/6537 K |
| UPC 11 | 69826265685 |
| UPC 12 | 69826265685 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Applicable Materials | Steel, Stainless Steel, Cast Iron and Non-Ferrous Metal |
| Finish | PVD TiAlN Coated |
| Material | Solid Carbide |
| ACM (advanced chip Management) flute geometry ensures sufficient flute space along the whole length of the tool and encourages small and manageable chips|Unique surface treatment provides a very smooth surface in the flutes to decrease torque|High speeds and feeds allow greater productivity to reduce cost per hole|Accurate deep holes to depths of up to 30 × drill diameter, without pecking |
| Axial concentric coolant entry on circle |
| Axial concentric coolant exit on circle |
| 20 bar coolant |
| EFW cutting feed |
| 28.442 deg helix flute |
| 19.338 deg orthogonal rake |
| GC34 manufacturer grade |
| 78.1 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 0.9 mm L point |
| 3 mm L regrind |
| 12732 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 861.1..A1-GP tool style |
| 3.12 usable length diameter ratio |
| K, M, N, P material grade |
| 20 life cycle state |
