Sandvik Coromant

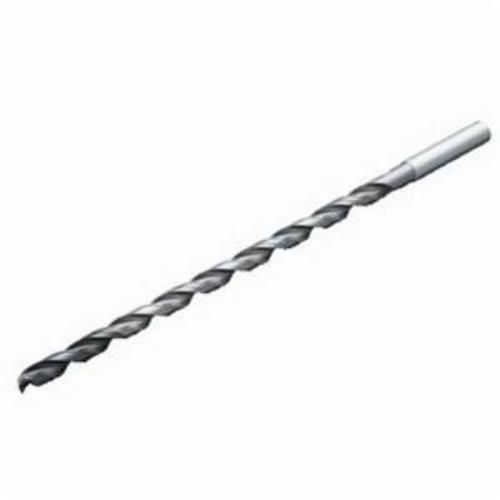

Sandvik Coromant 6151003 CoroDrill® 861 Extra Long Jobber Drill, 0.2031 in Dia x 5.3149 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6151003 CoroDrill® 861 Extra Long Jobber Drill, 0.2031 in Dia x 5.3149 in L, Carbide, PVD
SKU1235823
MFGR #6151003
Your Cost: $463.06/ea
Sandvik Coromant Jobber Drill, Extra Long, Series: CoroDrill® 861, 0.2031 in Dia, 5.3149 in Overall Length, 3.0787 in Cutting Depth, 2 Flutes, SSK Flute, 3.6614 in Flute Length, 0.2362 in Shank, Cylindrical Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Sandvik Coromant Jobber Drill, Extra Long, Series: CoroDrill® 861, 0.2031 in Dia, 5.3149 in Overall Length, 3.0787 in Cutting Depth, 2 Flutes, SSK Flute, 3.6614 in Flute Length, 0.2362 in Shank, Cylindrical Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Alternate Catalog Number 861.1-0516-077A1-GM GC34 Catalog Number 6151003 Country of Origin DE Cutting Depth 3.078 in Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 0.203 in Finish PVD/TiAlN Coated Flute Length 3.661 in Flute Type Spiral Gross Weight Per Pack 0.1100 lb Item Group 721 Number of Flutes 2 Point Angle 140 ° Point Type Split Series CoroDrill® 861 Shank Size 0.236 in Shank Type Cylindrical Specifications Met DIN 1835 A, DIN 6535 HA Specs Met DIN 1835 A, DIN 6535 HA Standards DIN1835-A/DIN6535-HA Through Coolant Yes UPC 11 69826265619 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Applicable Materials Steel, Stainless Steel, Cast Iron and Non-Ferrous Metals Drill Point Length 0.031 in Material Solid Carbide Overall Length 5.35 in 0 deg body half taper Axial concentric coolant entry on circle Axial concentric coolant exit on circle 20 bar coolant EFW cutting feed 26.364 deg helix flute 17.873 deg orthogonal rake GC34 manufacturer grade 134 mm L functional 36 mm L clamping 3 regrinds 0.8 mm L point 3 mm L regrind 19991 r/min H6 connection diameter tolerance H9 achievable hole tolerance 861.1..A1-GM (15xD) tool style 15.155 usable length diameter ratio K, M, N, P material grade 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 861.1-0516-077A1-GM GC34 |
| Catalog Number | 6151003 |
| Country of Origin | DE |
| Cutting Depth | 3.078 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 0.203 in |
| Finish | PVD/TiAlN Coated |
| Flute Length | 3.661 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.1100 lb |
| Item Group | 721 |
| Number of Flutes | 2 |
| Point Angle | 140 ° |
| Point Type | Split |
| Series | CoroDrill® 861 |
| Shank Size | 0.236 in |
| Shank Type | Cylindrical |
| Specifications Met | DIN 1835 A, DIN 6535 HA |
| Specs Met | DIN 1835 A, DIN 6535 HA |
| Standards | DIN1835-A/DIN6535-HA |
| Through Coolant | Yes |
| UPC 11 | 69826265619 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Applicable Materials | Steel, Stainless Steel, Cast Iron and Non-Ferrous Metals |
| Drill Point Length | 0.031 in |
| Material | Solid Carbide |
| Overall Length | 5.35 in |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| Axial concentric coolant exit on circle |
| 20 bar coolant |
| EFW cutting feed |
| 26.364 deg helix flute |
| 17.873 deg orthogonal rake |
| GC34 manufacturer grade |
| 134 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 0.8 mm L point |
| 3 mm L regrind |
| 19991 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 861.1..A1-GM (15xD) tool style |
| 15.155 usable length diameter ratio |
| K, M, N, P material grade |
| 20 life cycle state |
