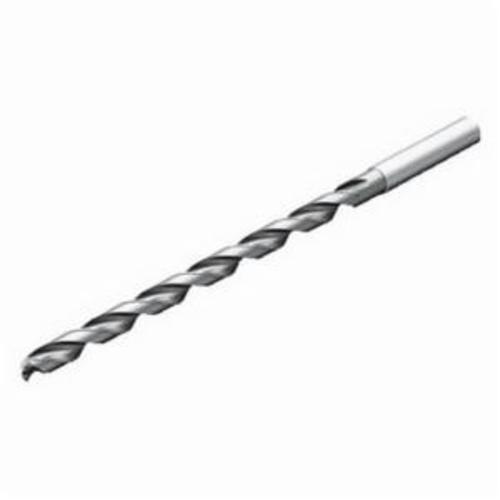

Sandvik Coromant 6151000 CoroDrill® 861 Extra Long Jobber Drill, 0.2007 in Dia x 5.0393 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant 6151000 CoroDrill® 861 Extra Long Jobber Drill, 0.2007 in Dia x 5.0393 in L, Carbide, PVD
SKU1235818
MFGR #6151000
Your Cost: $393.48/ea
Sandvik Coromant Jobber Drill, Extra Long, Series: CoroDrill® 861, 0.2007 in Dia, 5.0393 in Overall Length, 2.4409 in Cutting Depth, 2 Flutes, SSK Flute, 3.3858 in Flute Length, 0.2362 in Shank, Cylindrical Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Sandvik Coromant Jobber Drill, Extra Long, Series: CoroDrill® 861, 0.2007 in Dia, 5.0393 in Overall Length, 2.4409 in Cutting Depth, 2 Flutes, SSK Flute, 3.3858 in Flute Length, 0.2362 in Shank, Cylindrical Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Alternate Catalog Number 861.1-0510-061A1-GM GC34 Catalog Number 6151000 Country of Origin FR Cutting Depth 2.441 in Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 0.201 in Finish PVD/TiAlN Coated Flute Length 3.386 in Flute Type Spiral Gross Weight Per Pack 0.1000 lb Item Group 721 Number of Flutes 2 Point Angle 140 ° Point Type Split Series CoroDrill® 861 Shank Size 0.236 in Shank Type Cylindrical Specs Met DIN 1835 A, DIN 6535 HA Standards DIN1835-A/DIN6535-HA Through Coolant Yes UPC 11 69826265615 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Applicable Materials Steel, Stainless Steel, Cast Iron and Non-Ferrous Metals Drill Point Length 0.031 in Material Solid Carbide Overall Length 5.039 in 0 deg body half taper Axial concentric coolant entry on circle Axial concentric coolant exit on circle 20 bar coolant EFW cutting feed 26.103 deg helix flute 17.689 deg orthogonal rake GC34 manufacturer grade 127.2 mm L functional 36 mm L clamping 3 regrinds 0.8 mm L point 3 mm L regrind 20222 r/min H6 connection diameter tolerance H9 achievable hole tolerance 861.1..A1-GM (12xD) tool style 12.156 usable length diameter ratio K, M, N, P material grade 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 861.1-0510-061A1-GM GC34 |
| Catalog Number | 6151000 |
| Country of Origin | FR |
| Cutting Depth | 2.441 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 0.201 in |
| Finish | PVD/TiAlN Coated |
| Flute Length | 3.386 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.1000 lb |
| Item Group | 721 |
| Number of Flutes | 2 |
| Point Angle | 140 ° |
| Point Type | Split |
| Series | CoroDrill® 861 |
| Shank Size | 0.236 in |
| Shank Type | Cylindrical |
| Specs Met | DIN 1835 A, DIN 6535 HA |
| Standards | DIN1835-A/DIN6535-HA |
| Through Coolant | Yes |
| UPC 11 | 69826265615 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Applicable Materials | Steel, Stainless Steel, Cast Iron and Non-Ferrous Metals |
| Drill Point Length | 0.031 in |
| Material | Solid Carbide |
| Overall Length | 5.039 in |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| Axial concentric coolant exit on circle |
| 20 bar coolant |
| EFW cutting feed |
| 26.103 deg helix flute |
| 17.689 deg orthogonal rake |
| GC34 manufacturer grade |
| 127.2 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 0.8 mm L point |
| 3 mm L regrind |
| 20222 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 861.1..A1-GM (12xD) tool style |
| 12.156 usable length diameter ratio |
| K, M, N, P material grade |
| 20 life cycle state |
