Sandvik Coromant

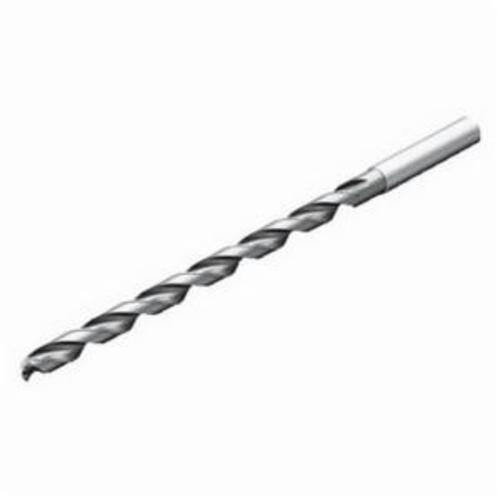

Sandvik Coromant 6150996 CoroDrill® 861 Extra Long Jobber Drill, 0.1968 in Dia x 5.0393 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6150996 CoroDrill® 861 Extra Long Jobber Drill, 0.1968 in Dia x 5.0393 in L, Carbide, PVD
SKU1235819
MFGR #6150996
Your Cost: $393.48/ea
Sandvik Coromant Jobber Drill, Extra Long, Series: CoroDrill® 861, 0.1968 in Dia, 5.0393 in Overall Length, 2.3937 in Cutting Depth, 2 Flutes, SSK Flute, 3.3858 in Flute Length, 0.2362 in Shank, Cylindrical Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Sandvik Coromant Jobber Drill, Extra Long, Series: CoroDrill® 861, 0.1968 in Dia, 5.0393 in Overall Length, 2.3937 in Cutting Depth, 2 Flutes, SSK Flute, 3.3858 in Flute Length, 0.2362 in Shank, Cylindrical Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Alternate Catalog Number 861.1-0500-060A1-GM GC34 Catalog Number 6150996 Country of Origin FR Cutting Depth 2.394 in Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 0.197 in Finish PVD/TiAlN Coated Flute Length 3.386 in Flute Type Spiral Gross Weight Per Pack 9.4800 lb Item Group 721 Number of Flutes 2 Point Angle 140 ° Point Type Split Series CoroDrill® 861 Shank Size 0.236 in Shank Type Cylindrical Specs Met DIN 1835 A, DIN 6535 HA Standards DIN1835-A/DIN6535-HA Through Coolant Yes UPC 11 69826265610 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Applicable Materials Steel, Stainless Steel, Cast Iron and Non-Ferrous Metals Drill Point Length 0.031 in Material Solid Carbide Overall Length 5.039 in 0 deg body half taper Axial concentric coolant entry on circle Axial concentric coolant exit on circle 20 bar coolant EFW cutting feed 25.658 deg helix flute 17.377 deg orthogonal rake GC34 manufacturer grade 127.2 mm L functional 36 mm L clamping 3 regrinds 0.8 mm L point 3 mm L regrind 20626 r/min H6 connection diameter tolerance H9 achievable hole tolerance 861.1..A1-GM (12xD) tool style 12.16 usable length diameter ratio K, M, N, P material grade 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 861.1-0500-060A1-GM GC34 |
| Catalog Number | 6150996 |
| Country of Origin | FR |
| Cutting Depth | 2.394 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 0.197 in |
| Finish | PVD/TiAlN Coated |
| Flute Length | 3.386 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 9.4800 lb |
| Item Group | 721 |
| Number of Flutes | 2 |
| Point Angle | 140 ° |
| Point Type | Split |
| Series | CoroDrill® 861 |
| Shank Size | 0.236 in |
| Shank Type | Cylindrical |
| Specs Met | DIN 1835 A, DIN 6535 HA |
| Standards | DIN1835-A/DIN6535-HA |
| Through Coolant | Yes |
| UPC 11 | 69826265610 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Applicable Materials | Steel, Stainless Steel, Cast Iron and Non-Ferrous Metals |
| Drill Point Length | 0.031 in |
| Material | Solid Carbide |
| Overall Length | 5.039 in |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| Axial concentric coolant exit on circle |
| 20 bar coolant |
| EFW cutting feed |
| 25.658 deg helix flute |
| 17.377 deg orthogonal rake |
| GC34 manufacturer grade |
| 127.2 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 0.8 mm L point |
| 3 mm L regrind |
| 20626 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 861.1..A1-GM (12xD) tool style |
| 12.16 usable length diameter ratio |
| K, M, N, P material grade |
| 20 life cycle state |
