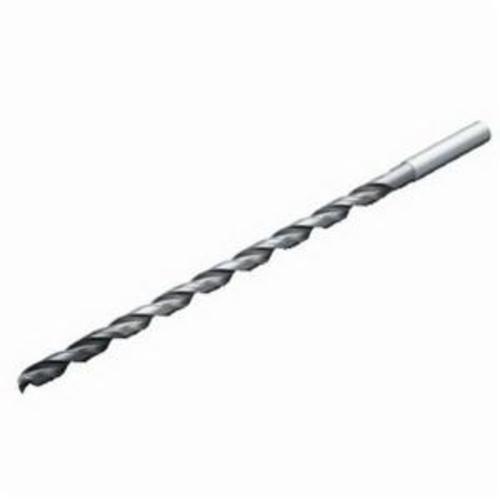

Sandvik Coromant 6150961 CoroDrill® 861 Extra Long Jobber Drill, 0.1562 in Dia x 4.4488 in L, Carbide, PVD
Custom_Product_Images_Illustration
Sandvik Coromant 6150961 CoroDrill® 861 Extra Long Jobber Drill, 0.1562 in Dia x 4.4488 in L, Carbide, PVD
SKU1235825
MFGR #6150961
Your Cost: $419.88/ea
Sandvik Coromant Jobber Drill, Extra Long, Series: CoroDrill® 861, 0.1562 in Dia, 4.4488 in Overall Length, 2.37 in Cutting Depth, 2 Flutes, SSK Flute, 2.7952 in Flute Length, 0.2362 in Shank, Cylindrical Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Sandvik Coromant Jobber Drill, Extra Long, Series: CoroDrill® 861, 0.1562 in Dia, 4.4488 in Overall Length, 2.37 in Cutting Depth, 2 Flutes, SSK Flute, 2.7952 in Flute Length, 0.2362 in Shank, Cylindrical Shank, 140 deg Point, Split Point, Right Hand Cutting, Carbide Cutting Edge, Carbide, PVD
Alternate Catalog Number 861.1-0397-060A1-GM GC34 Catalog Number 6150961 Country of Origin DE Cutting Depth 2.37 in Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 0.156 in Finish PVD/TiAlN Coated Flute Length 2.795 in Flute Type Spiral Gross Weight Per Pack 7.9400 lb Item Group 721 Number of Flutes 2 Point Angle 140 ° Point Type Split Series CoroDrill® 861 Shank Size 0.236 in Shank Type Cylindrical Specs Met DIN 1835 A, DIN 6535 HA Standards DIN1835-A/DIN6535-HA Through Coolant Yes UPC 11 69826265575 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Applicable Materials Steel, Stainless Steel, Cast Iron and Non-Ferrous Metals Drill Point Length 0.028 in Material Solid Carbide Overall Length 4.449 in 0 deg body half taper Axial concentric coolant entry on circle Axial concentric coolant exit on circle 20 bar coolant EFW cutting feed 28.994 deg helix flute 19.73 deg orthogonal rake GC34 manufacturer grade 112.8 mm L functional 36 mm L clamping 3 regrinds 0.7 mm L point 3 mm L regrind 25984 r/min H6 connection diameter tolerance H9 achievable hole tolerance 861.1..A1-GM (15xD) tool style 15.163 usable length diameter ratio K, M, N, P material grade 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 861.1-0397-060A1-GM GC34 |
| Catalog Number | 6150961 |
| Country of Origin | DE |
| Cutting Depth | 2.37 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 0.156 in |
| Finish | PVD/TiAlN Coated |
| Flute Length | 2.795 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 7.9400 lb |
| Item Group | 721 |
| Number of Flutes | 2 |
| Point Angle | 140 ° |
| Point Type | Split |
| Series | CoroDrill® 861 |
| Shank Size | 0.236 in |
| Shank Type | Cylindrical |
| Specs Met | DIN 1835 A, DIN 6535 HA |
| Standards | DIN1835-A/DIN6535-HA |
| Through Coolant | Yes |
| UPC 11 | 69826265575 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Applicable Materials | Steel, Stainless Steel, Cast Iron and Non-Ferrous Metals |
| Drill Point Length | 0.028 in |
| Material | Solid Carbide |
| Overall Length | 4.449 in |
| 0 deg body half taper |
| Axial concentric coolant entry on circle |
| Axial concentric coolant exit on circle |
| 20 bar coolant |
| EFW cutting feed |
| 28.994 deg helix flute |
| 19.73 deg orthogonal rake |
| GC34 manufacturer grade |
| 112.8 mm L functional |
| 36 mm L clamping |
| 3 regrinds |
| 0.7 mm L point |
| 3 mm L regrind |
| 25984 r/min |
| H6 connection diameter tolerance |
| H9 achievable hole tolerance |
| 861.1..A1-GM (15xD) tool style |
| 15.163 usable length diameter ratio |
| K, M, N, P material grade |
| 20 life cycle state |
