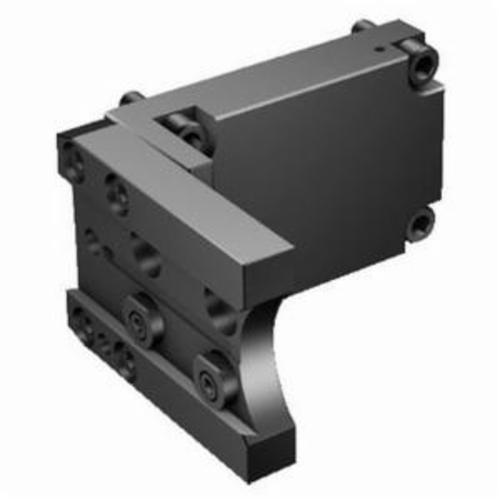

Sandvik Coromant 6144196 Neutral Adapter, BMT Turret Interface x Blade Shank

Indexable Turning Tool Holders
1237284 MFG #: 6144196
Sandvik Coromant
1222.94000 / ea
Sandvik Coromant Adapter, Neutral, 3.3464 in Overall Length, BMT Turret Interface x Blade Shank, ANSI Code: APB-TNE-BT65A-25, ISO Code: APB-TNE-BT65A-25
QTY
  • Features
BMT non-driven turret interface -size BT65A machine side adaptive interface
Parting off and grooving blade -size 25L workpiece side adaptive interface
0 deg body workpiece side
Decentral over flange and axial coolant entry
80 bar coolant
Radial coolant exit
25 mm H functional
80 mm L functional
100 mm H
125.5 mm W
APB-TNE-BT65A tool style
73 mm W functional
40 life cycle state
