Sandvik Coromant 6144188 CoroCut® 1-2, N123G2-0300-0003-TF Insert, 1.1811 in, Steel
Indexable Cut-Off/Parting Blades
1247681
MFG #: 6144188
Sandvik Coromant
262.49000
/ ea

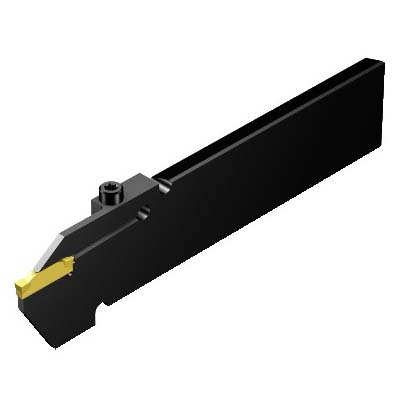

Sandvik Coromant Parting Off and Grooving Blade, Series: CoroCut® 1-2, 1.0196 in Blade Height, 1.1811 in Maximum Depth of Cut, 4.3307 in Overall Length, Right Hand Cutting, Insert Compatibility: N123G2-0300-0003-TF, G Insert Seat, Steel
- Features
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 60 mm Dia maximum workpiece parting |
| No coolant exit |
| 21 mm connection |
| 0 deg rake orthogonal |
| 21.4 mm H functional |
| 90 deg cutting edge |
| T-Triangular insert shape |
| 110 mm length to cutting item reference point |
| 51 mm overhang |
| R/LF123..B1 (C) style |
| 6.85 mm W functiona |
| ANSI Code: RF123G30-21B1 |
| ISO Code: RF123G30-21B1 |
