- Features
-10 deg axial clearance |
20 life cycle state |
0 deg body workpiece side |
Steel body |
Without coolant entry |
40 - 60 deg insert screw, rail bottom |
No coolant exit-10 deg rake orthogonal |
25.4 mm H functional |
-1 deg inclination |
23.4 mm overhang |
T - Triangle inser |
3/8 in insert seat |
1 deg thread helix correction |
2.2 Nm torque |

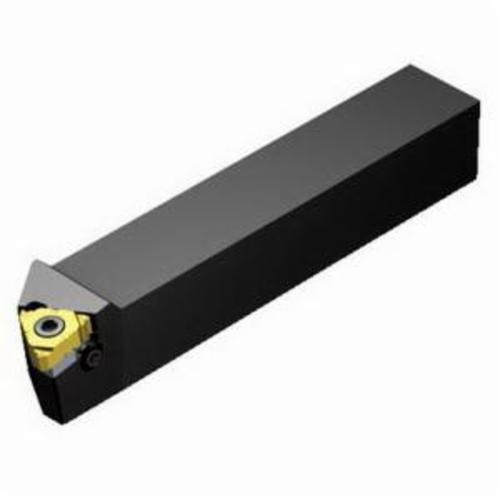

266R/LFA (2-INCH) tool style |
25.908 mm W functional |
Rectangular shank machine side adaptive interface |
ANSI Code: 266RFA-163D |
ISO Code: 266RFA-163D |
