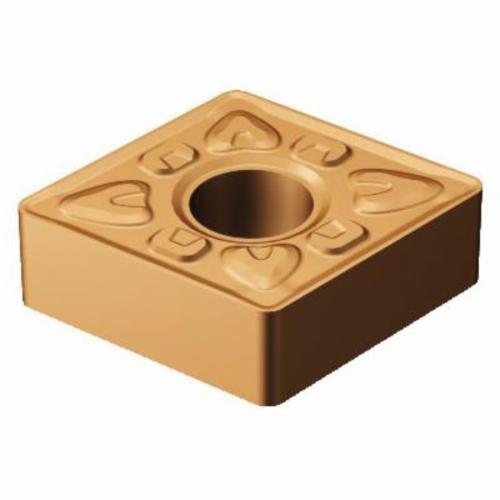

Sandvik Coromant 6136057 T-Max® P Negative Basic Shape Turning Insert, CNMG 544-XMR GC15, C-80 deg Diamond, CNMG Insert, GC15
Custom_Product_Images_Illustration
Sandvik Coromant 6136057 T-Max® P Negative Basic Shape Turning Insert, CNMG 544-XMR GC15, C-80 deg Diamond, CNMG Insert, GC15
SKU1231082
MFGR #6136057
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, XMR Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: GC15, ANSI Code: CNMG 544-XMR GC15, ISO Code: CNMG 16 06 16-XMR GC15, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/N/P/S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, XMR Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: GC15, ANSI Code: CNMG 544-XMR GC15, ISO Code: CNMG 16 06 16-XMR GC15, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/N/P/S
Alternate Catalog Number CNMG 544-XMR GC15 ANSI Code CNMG 544-XMR GC15 Catalog Number 6136057 Corner Radius 0.0624 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0500 lb Hand of Insert Neutral Hole Diameter 1/4 in Included Angle 80 deg ISO Code CNMG 16 06 16-XMR GC15 Item Group 110 Length 0.6346 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826264111 Width XMR Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XMR Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 5/8 in Insert Size C - 80 deg Diamond Insert Style CNMG Manufacturer's Grade GC15 Material Carbide Material Grade M/N/P/S Maximum Depth of Cut 7 mm Rake Negative Seat Size 16 Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.25 - 0.7 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 544-XMR GC15 |
| ANSI Code | CNMG 544-XMR GC15 |
| Catalog Number | 6136057 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0500 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 1/4 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 16 06 16-XMR GC15 |
| Item Group | 110 |
| Length | 0.6346 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826264111 |
| Width | XMR |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 5/8 in |
| Insert Size | C - 80 deg Diamond |
| Insert Style | CNMG |
| Manufacturer's Grade | GC15 |
| Material | Carbide |
| Material Grade | M/N/P/S |
| Maximum Depth of Cut | 7 mm |
| Rake | Negative |
| Seat Size | 16 |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.25 - 0.7 mm/r cutting feed |
| 20 life cycle state |
