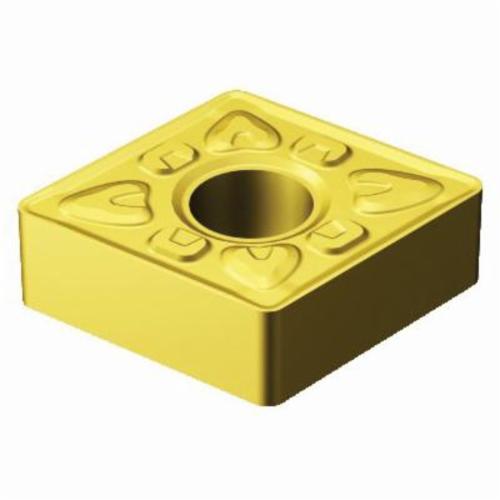

Sandvik Coromant 6136056 T-Max® P Negative Basic Shape Turning Insert, CNMG 543-XMR GC30, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6136056 T-Max® P Negative Basic Shape Turning Insert, CNMG 543-XMR GC30, C-80 deg Diamond, CNMG Insert
SKU1232045
MFGR #6136056
Your Cost: $29.49/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, XMR Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: GC30, ANSI Code: CNMG 543-XMR GC30, ISO Code: CNMG 16 06 12-XMR GC30, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, XMR Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: GC30, ANSI Code: CNMG 543-XMR GC30, ISO Code: CNMG 16 06 12-XMR GC30, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/M/P
Alternate Catalog Number CNMG 543-XMR GC30 ANSI Code CNMG 543-XMR GC30 Catalog Number 6136056 Corner Radius 0.0468 in Country of Origin SE Finish CVD Coated Gross Weight Per Pack 0.0500 lb Hand of Insert Neutral Hole Diameter 1/4 in Included Angle 80 deg ISO Code CNMG 16 06 12-XMR GC30 Item Group 110 Length 0.6346 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826264107 Width XMR Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XMR Cutting Direction Neutral For Use On Cast Iron, Stainless Steel and Steel Inscribed Circle 5/8 in Insert Size C - 80 deg Diamond Insert Style CNMG Manufacturer's Grade GC30 Material Carbide Material Grade H/K/M/P Maximum Depth of Cut 7 mm Rake Negative Seat Size 16 Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.2 - 0.65 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 543-XMR GC30 |
| ANSI Code | CNMG 543-XMR GC30 |
| Catalog Number | 6136056 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0500 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 1/4 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 16 06 12-XMR GC30 |
| Item Group | 110 |
| Length | 0.6346 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826264107 |
| Width | XMR |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XMR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron, Stainless Steel and Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | C - 80 deg Diamond |
| Insert Style | CNMG |
| Manufacturer's Grade | GC30 |
| Material | Carbide |
| Material Grade | H/K/M/P |
| Maximum Depth of Cut | 7 mm |
| Rake | Negative |
| Seat Size | 16 |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 0.65 mm/r cutting feed |
| 20 life cycle state |
