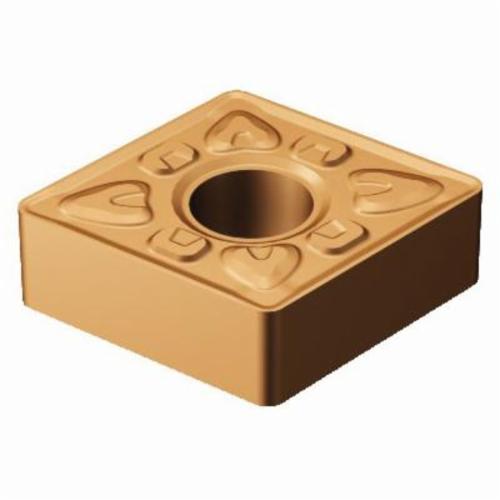

Sandvik Coromant 6136055 T-Max® P Negative Basic Shape Turning Insert, CNMG 543-XMR GC15, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6136055 T-Max® P Negative Basic Shape Turning Insert, CNMG 543-XMR GC15, C-80 deg Diamond, CNMG Insert
SKU1232046
MFGR #6136055
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, XMR Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: GC15, ANSI Code: CNMG 543-XMR GC15, ISO Code: CNMG 16 06 12-XMR GC15, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/N/P/S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 7 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, XMR Chipbreaker, 0.0468 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: GC15, ANSI Code: CNMG 543-XMR GC15, ISO Code: CNMG 16 06 12-XMR GC15, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/N/P/S
Alternate Catalog Number CNMG 543-XMR GC15 ANSI Code CNMG 543-XMR GC15 Catalog Number 6136055 Corner Radius 0.0468 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0500 lb Hand of Insert Neutral Hole Diameter 1/4 in Included Angle 80 deg ISO Code CNMG 16 06 12-XMR GC15 Item Group 110 Length 0.6346 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape UPC 11 69826264106 Width 7 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XMR Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 5/8 in Insert Size Carbide Insert Style CNMG Manufacturer's Grade GC15 Material Carbide Material Grade M/N/P/S Maximum Depth of Cut 7 mm Rake Negative Seat Size 16 Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.2 - 0.65 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 543-XMR GC15 |
| ANSI Code | CNMG 543-XMR GC15 |
| Catalog Number | 6136055 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0500 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 1/4 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 16 06 12-XMR GC15 |
| Item Group | 110 |
| Length | 0.6346 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826264106 |
| Width | 7 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XMR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 5/8 in |
| Insert Size | Carbide |
| Insert Style | CNMG |
| Manufacturer's Grade | GC15 |
| Material | Carbide |
| Material Grade | M/N/P/S |
| Maximum Depth of Cut | 7 mm |
| Rake | Negative |
| Seat Size | 16 |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 0.65 mm/r cutting feed |
| 20 life cycle state |
