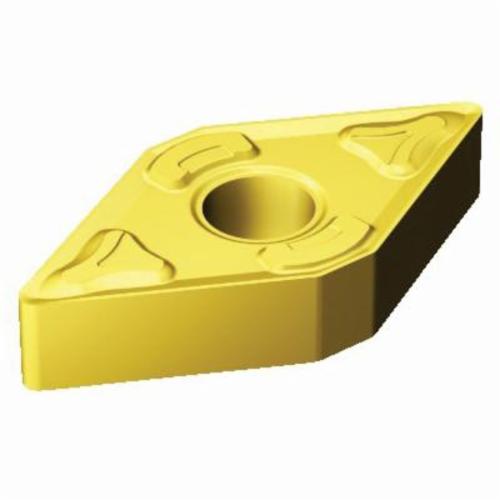

Sandvik Coromant 6136006 T-Max® P Negative Basic Shape Turning Insert, DNMG 431-XM GC30, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6136006 T-Max® P Negative Basic Shape Turning Insert, DNMG 431-XM GC30, D-55 deg Diamond, DNMG Insert
SKU1235450
MFGR #6136006
Your Cost: $23.63/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, XM Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: GC30, ANSI Code: DNMG 431-XM GC30, ISO Code: DNMG 15 04 04-XM GC30, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, XM Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: GC30, ANSI Code: DNMG 431-XM GC30, ISO Code: DNMG 15 04 04-XM GC30, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/M/P
Alternate Catalog Number DNMG 431-XM GC30 ANSI Code DNMG 431-XM GC30 Catalog Number 6136006 Corner Radius 0.0156 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2900 lb Hole Diameter 0.2029 in Included Angle 55 ° ISO Code DNMG 15 04 04-XM GC30 Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 0.1874 in UPC 11 69826264282 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XM Cutting Direction Neutral For Use On Cast Iron, Stainless Steel and Steel Inscribed Circle 1/2 in Insert Size 431 Insert Style DNMG Manufacturer's Grade GC30 Material Carbide Material Grade K, M, P Maximum Depth of Cut 0.197 in Rake Negative Seat Size 15 Shape Rhombic Reliable and secure machining, even in roughing applications Possibility to optimize by using damped Silent Tools™ Excellent surface finish ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.08 - 0.25 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 431-XM GC30 |
| ANSI Code | DNMG 431-XM GC30 |
| Catalog Number | 6136006 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2900 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 ° |
| ISO Code | DNMG 15 04 04-XM GC30 |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| UPC 11 | 69826264282 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron, Stainless Steel and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 431 |
| Insert Style | DNMG |
| Manufacturer's Grade | GC30 |
| Material | Carbide |
| Material Grade | K, M, P |
| Maximum Depth of Cut | 0.197 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Rhombic |
| Reliable and secure machining, even in roughing applications |
| Possibility to optimize by using damped Silent Tools™ |
| Excellent surface finish |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.08 - 0.25 mm/r cutting feed |
| 20 life cycle state |
