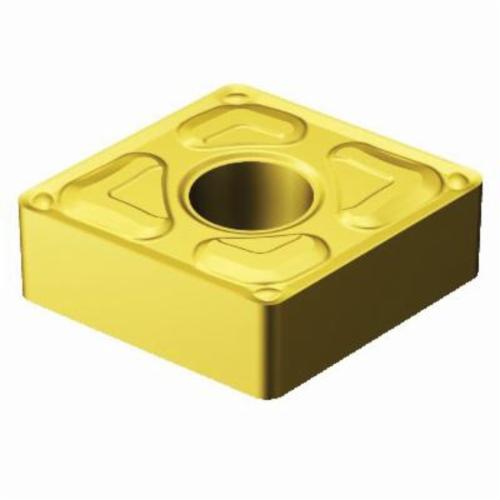

Sandvik Coromant 6107602 T-Max® P Negative Basic Shape Turning Insert, CNMG 431-XF GC30, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6107602 T-Max® P Negative Basic Shape Turning Insert, CNMG 431-XF GC30, C-80 deg Diamond, CNMG Insert
SKU1231190
MFGR #6107602
Your Cost: $17.69/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, XF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: GC30, ANSI Code: CNMG 431-XF GC30, ISO Code: CNMG 12 04 04-XF GC30, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, XF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: GC30, ANSI Code: CNMG 431-XF GC30, ISO Code: CNMG 12 04 04-XF GC30, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/M/P
Alternate Catalog Number CNMG 431-XF GC30 ANSI Code CNMG 431-XF GC30 Catalog Number 6107602 Corner Radius 0.0156 in Country of Origin SE Finish CVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 80 deg ISO Code CNMG 12 04 04-XF GC30 Item Group 110 Length 0.5077 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape UPC 11 69826264089 Width XF Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XF Cutting Direction Neutral For Use On Cast Iron, Stainless Steel and Steel Inscribed Circle 1/2 in Insert Size CNMG Insert Style CNMG Manufacturer's Grade GC30 Material Carbide Material Grade H/K/M/P Maximum Depth of Cut 4 mm Rake Negative Seat Size 12 Shape C-80 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.04 - 0.2 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 431-XF GC30 |
| ANSI Code | CNMG 431-XF GC30 |
| Catalog Number | 6107602 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 deg |
| ISO Code | CNMG 12 04 04-XF GC30 |
| Item Group | 110 |
| Length | 0.5077 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| UPC 11 | 69826264089 |
| Width | XF |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XF |
| Cutting Direction | Neutral |
| For Use On | Cast Iron, Stainless Steel and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | CNMG |
| Insert Style | CNMG |
| Manufacturer's Grade | GC30 |
| Material | Carbide |
| Material Grade | H/K/M/P |
| Maximum Depth of Cut | 4 mm |
| Rake | Negative |
| Seat Size | 12 |
| Shape | C-80 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.04 - 0.2 mm/r cutting feed |
| 20 life cycle state |
