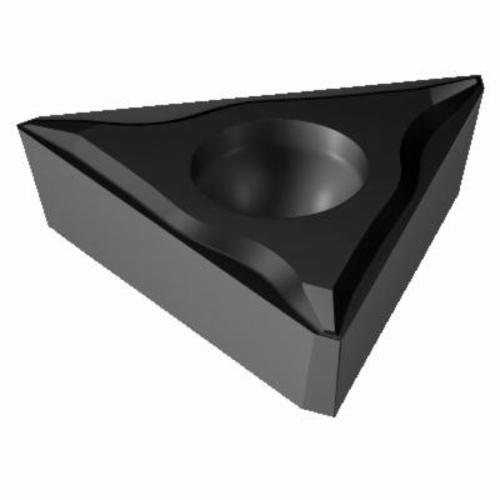

Sandvik Coromant 6075400 CoroTurn® 107 Basic Shape Positive Turning Insert, TCEX 22(03)R-F 1105, T-Triangle, TCEX Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6075400 CoroTurn® 107 Basic Shape Positive Turning Insert, TCEX 22(03)R-F 1105, T-Triangle, TCEX Insert
SKU1234112
MFGR #6075400
$/ea
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, TCEX Insert, T-Triangle, 4 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4228 in Length, F Chipbreaker, 0.0039 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: TCEX 22(03)R-F 1105, ISO Code: TCEX 11 03 01R-F 1105, 60 deg Included Angle, 7 deg Relief Angle, Right Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, TCEX Insert, T-Triangle, 4 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4228 in Length, F Chipbreaker, 0.0039 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: TCEX 22(03)R-F 1105, ISO Code: TCEX 11 03 01R-F 1105, 60 deg Included Angle, 7 deg Relief Angle, Right Hand, Carbide, PVD Coated, Material Grade: M/S
ANSI Code TCEX 22(03)R-F 1105 Catalog Number 6075400 Corner Radius 0.0039 in Country of Origin SE Finish PVD Coated Gross Weight Per Pack 1 lb Hand of Insert Right Hole Diameter 0.1102 in Included Angle 60 deg ISO Code TCEX 11 03 01R-F 1105 Length 0.4228 in Relief Angle 7 deg Series CoroTurn® 107 Thickness 1/8 in Type Basic Shape Positive UPC 11 69826264447 Width F Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker F Inscribed Circle 1/4 in Insert Size T - Triangle Insert Style TCEX Manufacturer's Grade 1105 Material Carbide Material Grade M/S Maximum Depth of Cut 4 mm Shape T-Triangle 40 - 60 deg countersunk hole and non-flat surface clamping interface 1-side cutting +/-0.025 mm THK and inscribed circle tolerance Sharp cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.02 - 0.15 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | TCEX 22(03)R-F 1105 |
| Catalog Number | 6075400 |
| Corner Radius | 0.0039 in |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1102 in |
| Included Angle | 60 deg |
| ISO Code | TCEX 11 03 01R-F 1105 |
| Length | 0.4228 in |
| Relief Angle | 7 deg |
| Series | CoroTurn® 107 |
| Thickness | 1/8 in |
| Type | Basic Shape Positive |
| UPC 11 | 69826264447 |
| Width | F |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | F |
| Inscribed Circle | 1/4 in |
| Insert Size | T - Triangle |
| Insert Style | TCEX |
| Manufacturer's Grade | 1105 |
| Material | Carbide |
| Material Grade | M/S |
| Maximum Depth of Cut | 4 mm |
| Shape | T-Triangle |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.025 mm THK and inscribed circle tolerance |
| Sharp cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.02 - 0.15 mm/r cutting feed |
| 20 life cycle state |
