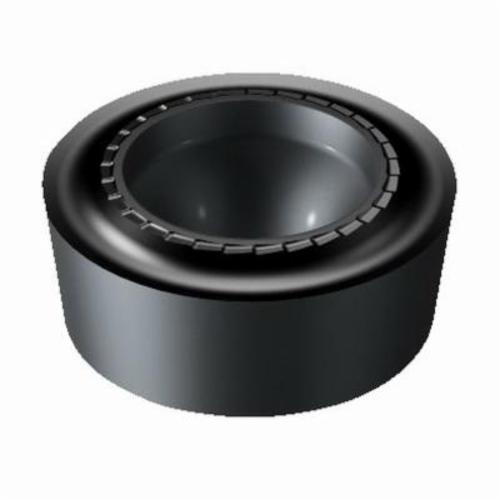

Sandvik Coromant 6075370 CoroTurn® 107 Basic Shape Positive Turning Insert, RCMT 3(2.5)-SM 1105, R-Round, RCMT Insert, 1105
Custom_Product_Images_Illustration
Sandvik Coromant 6075370 CoroTurn® 107 Basic Shape Positive Turning Insert, RCMT 3(2.5)-SM 1105, R-Round, RCMT Insert, 1105
SKU1246078
MFGR #6075370
Your Cost: $10.97/ea
List: Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, RCMT Insert, R-Round, 2.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, SM Chipbreaker, 0.1874 in Corner Radius, 0.1574 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: RCMT 3(2.5)-SM 1105, ISO Code: RCMT 09 T3 00-SM 1105, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, RCMT Insert, R-Round, 2.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, SM Chipbreaker, 0.1874 in Corner Radius, 0.1574 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: RCMT 3(2.5)-SM 1105, ISO Code: RCMT 09 T3 00-SM 1105, 7 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
ANSI Code RCMT 3(2.5)-SM 1105 Catalog Number 6075370 Corner Radius 0.187 in Country of Origin IN Finish PVD-TiAlN2 Coated Gross Weight Per Pack 9.0600 lb Hole Diameter 0.1574 in ISO Code RCMT 09 T3 00-SM 1105 Relief Angle 7 ° Series CoroTurn® 107 Thickness 0.156 in Type 1-Sided Basic Shape UPC 11 69826264347 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Cutting Direction Neutral For Use On Heat Resistant Super Alloys and Stainless Steel Inscribed Circle 3/8 in Insert Size 3(2.5) Insert Style RCMT Manufacturer's Grade 1105 Material Carbide Material Grade M, S Maximum Depth of Cut 0.087 in Rake Positive Seat Size 09 Shape Round Reliable and secure machining, even in roughing applications Possibility to optimize by using damped Silent Tools™ Excellent surface finish ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.18 - 0.4 mm/r cutting feed 30 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | RCMT 3(2.5)-SM 1105 |
| Catalog Number | 6075370 |
| Corner Radius | 0.187 in |
| Country of Origin | IN |
| Finish | PVD-TiAlN2 Coated |
| Gross Weight Per Pack | 9.0600 lb |
| Hole Diameter | 0.1574 in |
| ISO Code | RCMT 09 T3 00-SM 1105 |
| Relief Angle | 7 ° |
| Series | CoroTurn® 107 |
| Thickness | 0.156 in |
| Type | 1-Sided Basic Shape |
| UPC 11 | 69826264347 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Cutting Direction | Neutral |
| For Use On | Heat Resistant Super Alloys and Stainless Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 3(2.5) |
| Insert Style | RCMT |
| Manufacturer's Grade | 1105 |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.087 in |
| Rake | Positive |
| Seat Size | 09 |
| Shape | Round |
| Reliable and secure machining, even in roughing applications |
| Possibility to optimize by using damped Silent Tools™ |
| Excellent surface finish |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.18 - 0.4 mm/r cutting feed |
| 30 life cycle state |
