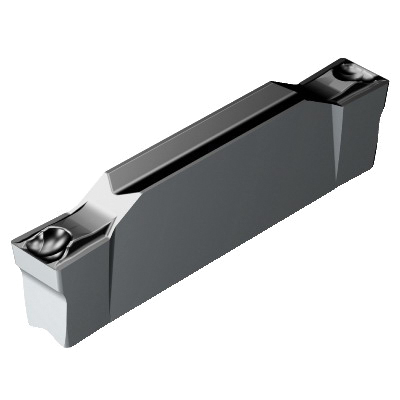

Sandvik Coromant 6075366 CoroCut® 1-2 Grooving Insert, N123H2-0500-0004-GF 1105, N123x2-GF Insert, 0.1968 in W Cutting, 1105, N123H2-0500-0004-GF 1105
Custom_Product_Images_Illustration
Sandvik Coromant 6075366 CoroCut® 1-2 Grooving Insert, N123H2-0500-0004-GF 1105, N123x2-GF Insert, 0.1968 in W Cutting, 1105, N123H2-0500-0004-GF 1105
SKU1247469
MFGR #6075366
Your Cost: $56.44/ea
List: Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, N123x2-GF Insert, 0.1968 in Cutting Width, 0.9606 in Maximum Depth of Cut, 0 deg Lead Angle, GF Chipbreaker, 0.0157 in Corner Radius, 0.1712 in Thickness, Manufacturers Grade: 1105, ANSI Code: N123H2-0500-0004-GF 1105, ISO Code: N123H2-0500-0004-GF 1105, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, N123x2-GF Insert, 0.1968 in Cutting Width, 0.9606 in Maximum Depth of Cut, 0 deg Lead Angle, GF Chipbreaker, 0.0157 in Corner Radius, 0.1712 in Thickness, Manufacturers Grade: 1105, ANSI Code: N123H2-0500-0004-GF 1105, ISO Code: N123H2-0500-0004-GF 1105, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Alternate Catalog Number N123H2-0500-0004-GF 1105 ANSI Code N123H2-0500-0004-GF 1105 Catalog Number 6075366 Country of Origin SE Finish PVD-TiAlN2 Coated Gross Weight Per Pack 0.2000 lb ISO Code N123H2-0500-0004-GF 1105 Item Group 320 Material Grade M, N, P, S Series CoroCut® 1-2 Thickness 0.1713 in Type Low Feed UPC 11 69826264340 Width 0.197 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker GF Corner Radius 0.016 in Cutting Direction Neutral Cutting Width 0.0000 in Insert Size H2 Insert Style N123 Lead Angle 0 ° Manufacturer's Grade 1105 Material Carbide Maximum Depth of Cut 0.961 in Versatile parting and grooving|Secure and efficient machining|Cost efficiency with two edges 20 life cycle state 0 deg body machine side -0.02 mm W cutting lower tolerance 0.02 mm W cutting upper tolerance -0.05 mm corner radius lower tolerance 0.05 mm corner radius upper tolerance Finishing operation 25.05 mm L interfering edge Concave clamping 0 deg maximum ramping E cutting edge condition 1-side cutting 2 edges 0.06 - 0.24 mm/r cutting feed 7 insert mounting style code H insert seat size code
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | N123H2-0500-0004-GF 1105 |
| ANSI Code | N123H2-0500-0004-GF 1105 |
| Catalog Number | 6075366 |
| Country of Origin | SE |
| Finish | PVD-TiAlN2 Coated |
| Gross Weight Per Pack | 0.2000 lb |
| ISO Code | N123H2-0500-0004-GF 1105 |
| Item Group | 320 |
| Material Grade | M, N, P, S |
| Series | CoroCut® 1-2 |
| Thickness | 0.1713 in |
| Type | Low Feed |
| UPC 11 | 69826264340 |
| Width | 0.197 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | GF |
| Corner Radius | 0.016 in |
| Cutting Direction | Neutral |
| Cutting Width | 0.0000 in |
| Insert Size | H2 |
| Insert Style | N123 |
| Lead Angle | 0 ° |
| Manufacturer's Grade | 1105 |
| Material | Carbide |
| Maximum Depth of Cut | 0.961 in |
| Versatile parting and grooving|Secure and efficient machining|Cost efficiency with two edges |
| 20 life cycle state |
| 0 deg body machine side |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| Finishing operation |
| 25.05 mm L interfering edge |
| Concave clamping |
| 0 deg maximum ramping |
| E cutting edge condition |
| 1-side cutting |
| 2 edges |
| 0.06 - 0.24 mm/r cutting feed |
| 7 insert mounting style code |
| H insert seat size code |
