Sandvik Coromant

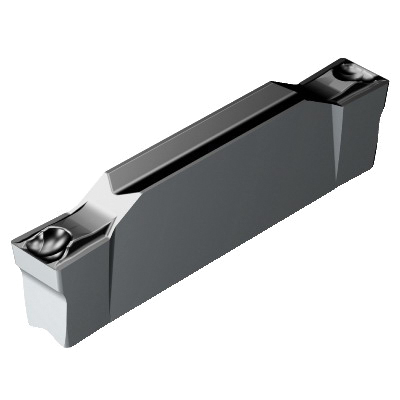

Sandvik Coromant 6075359 CoroCut® 1-2 Grooving Insert, N123F2-0246-0003-GF 1105, N123x2-GF Insert, 0.0968 in W Cutting, 1105, N123F2-0246-0003-GF 1105
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6075359 CoroCut® 1-2 Grooving Insert, N123F2-0246-0003-GF 1105, N123x2-GF Insert, 0.0968 in W Cutting, 1105, N123F2-0246-0003-GF 1105
SKU1247581
MFGR #6075359
Your Cost: $49.47/ea
List: Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, N123x2-GF Insert, 0.0968 in Cutting Width, 0.7519 in Maximum Depth of Cut, 0 deg Lead Angle, GF Chipbreaker, 0.0118 in Corner Radius, 0.1712 in Thickness, Manufacturers Grade: 1105, ANSI Code: N123F2-0246-0003-GF 1105, ISO Code: N123F2-0246-0003-GF 1105, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Grooving Insert, Series: CoroCut® 1-2, N123x2-GF Insert, 0.0968 in Cutting Width, 0.7519 in Maximum Depth of Cut, 0 deg Lead Angle, GF Chipbreaker, 0.0118 in Corner Radius, 0.1712 in Thickness, Manufacturers Grade: 1105, ANSI Code: N123F2-0246-0003-GF 1105, ISO Code: N123F2-0246-0003-GF 1105, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Alternate Catalog Number N123F2-0246-0003-GF 1105 ANSI Code N123F2-0246-0003-GF 1105 Catalog Number 6075359 Country of Origin SE Finish PVD-TiAlN2 Coated Gross Weight Per Pack 0.1900 lb ISO Code N123F2-0246-0003-GF 1105 Item Group 320 Material Grade M, N, P, S Series CoroCut® 1-2 Thickness 0.1693 in Type Low Feed UPC 11 69826264328 Width 0.097 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker GF Corner Radius 0.012 in Cutting Direction Neutral Cutting Width 0.0000 in Insert Size F2 Insert Style N123 Lead Angle 0 ° Manufacturer's Grade 1105 Material Carbide Maximum Depth of Cut 0.752 in Versatile parting and grooving|Secure and efficient machining|Cost efficiency with two edges 20 life cycle state 0 deg body machine side -0.02 mm W cutting lower tolerance 0.02 mm W cutting upper tolerance -0.05 mm corner radius lower tolerance 0.05 mm corner radius upper tolerance Finishing operation 20.05 mm L interfering edge Concave clamping 0 deg maximum ramping E cutting edge condition 1-side cutting 2 edges 0.03 - 0.14 mm/r cutting feed 7 insert mounting style code F insert seat size code
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | N123F2-0246-0003-GF 1105 |
| ANSI Code | N123F2-0246-0003-GF 1105 |
| Catalog Number | 6075359 |
| Country of Origin | SE |
| Finish | PVD-TiAlN2 Coated |
| Gross Weight Per Pack | 0.1900 lb |
| ISO Code | N123F2-0246-0003-GF 1105 |
| Item Group | 320 |
| Material Grade | M, N, P, S |
| Series | CoroCut® 1-2 |
| Thickness | 0.1693 in |
| Type | Low Feed |
| UPC 11 | 69826264328 |
| Width | 0.097 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | GF |
| Corner Radius | 0.012 in |
| Cutting Direction | Neutral |
| Cutting Width | 0.0000 in |
| Insert Size | F2 |
| Insert Style | N123 |
| Lead Angle | 0 ° |
| Manufacturer's Grade | 1105 |
| Material | Carbide |
| Maximum Depth of Cut | 0.752 in |
| Versatile parting and grooving|Secure and efficient machining|Cost efficiency with two edges |
| 20 life cycle state |
| 0 deg body machine side |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.05 mm corner radius lower tolerance |
| 0.05 mm corner radius upper tolerance |
| Finishing operation |
| 20.05 mm L interfering edge |
| Concave clamping |
| 0 deg maximum ramping |
| E cutting edge condition |
| 1-side cutting |
| 2 edges |
| 0.03 - 0.14 mm/r cutting feed |
| 7 insert mounting style code |
| F insert seat size code |
