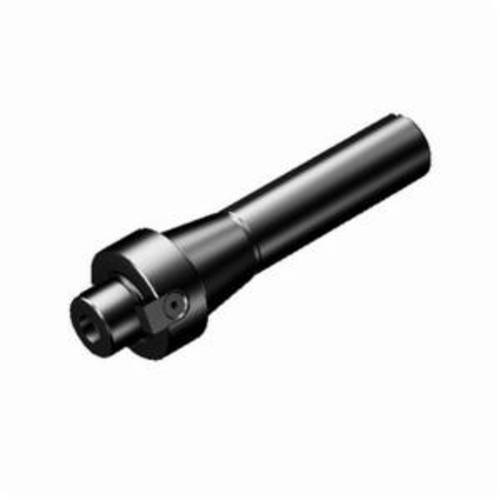

Sandvik Coromant 6073990 Adapter, 3/4 in Hole, R8 Bridgeport® x Arbor Shank, R8 Taper, 3/4 in Nose, 0.7874 in Projection
Custom_Product_Images_Illustration
Sandvik Coromant 6073990 Adapter, 3/4 in Hole, R8 Bridgeport® x Arbor Shank, R8 Taper, 3/4 in Nose, 0.7874 in Projection
SKU1249111
MFGR #6073990
Your Cost: $249.72/ea
Sandvik Coromant Adapter, 3/4 in Hole Dia, R8 Bridgeport® x Arbor Shank, R8 Taper, 3/4 in Nose Dia, 0.7874 in Projection, 4.7874 in Overall Length, 1.5748 in Overall Dia, 3/4 in Shank Connection, ANSI Code: A392.R8.05-19 020, ISO Code: A392.R8.05-19 020
Sandvik Coromant Adapter, 3/4 in Hole Dia, R8 Bridgeport® x Arbor Shank, R8 Taper, 3/4 in Nose Dia, 0.7874 in Projection, 4.7874 in Overall Length, 1.5748 in Overall Dia, 3/4 in Shank Connection, ANSI Code: A392.R8.05-19 020, ISO Code: A392.R8.05-19 020
Alternate Catalog Number A392.R8.05-19 020 ANSI Code A392.R8.05-19 020 Catalog Number 6073990 Country of Origin SE Gross Weight Per Pack 1.3300 lb ISO Code A392.R8.05-19 020 Item Group 540 Overall Diameter 1.5748 in Overall Length 4.7874 in Series 19.05 mm Shank Connection Size 3/4 in System Size Machine Side R8 Type 5758311 Key, 5758316 Key, 5763016 Centre Screw, 5763042 Centre Screw, 5763776 Driving Key and 5764848 Screw UPC 11 69826255706 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Hole Diameter 3/4 in Nose Diameter 3/4 in Projection 0.7874 in Shank Type R8 Bridgeport® x Arbor Taper Size R8 Steel body Without coolant entry No coolant exit 101.6 mm L shank 20 mm overhang 25 Nm torque A392.R8.05 (1) tool style 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | A392.R8.05-19 020 |
| ANSI Code | A392.R8.05-19 020 |
| Catalog Number | 6073990 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.3300 lb |
| ISO Code | A392.R8.05-19 020 |
| Item Group | 540 |
| Overall Diameter | 1.5748 in |
| Overall Length | 4.7874 in |
| Series | 19.05 mm |
| Shank Connection Size | 3/4 in |
| System Size Machine Side | R8 |
| Type | 5758311 Key, 5758316 Key, 5763016 Centre Screw, 5763042 Centre Screw, 5763776 Driving Key and 5764848 Screw |
| UPC 11 | 69826255706 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Hole Diameter | 3/4 in |
| Nose Diameter | 3/4 in |
| Projection | 0.7874 in |
| Shank Type | R8 Bridgeport® x Arbor |
| Taper Size | R8 |
| Steel body |
| Without coolant entry |
| No coolant exit |
| 101.6 mm L shank |
| 20 mm overhang |
| 25 Nm torque |
| A392.R8.05 (1) tool style |
| 20 life cycle state |
