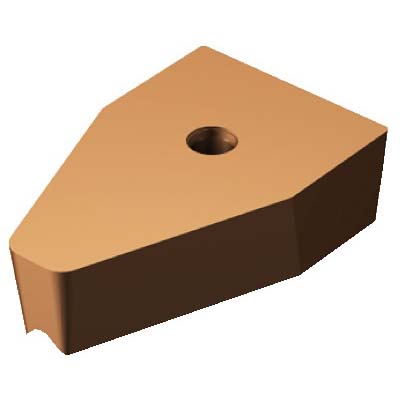

Sandvik Coromant 6073552 CoroMill® 170 Gear Milling Insert, 176M40-N100608E-PM 1030, L-Rectangle, 176M..-PM Insert, Carbide, 1030, 176M40-N100608E-PM 1030
Custom_Product_Images_Illustration
Sandvik Coromant 6073552 CoroMill® 170 Gear Milling Insert, 176M40-N100608E-PM 1030, L-Rectangle, 176M..-PM Insert, Carbide, 1030, 176M40-N100608E-PM 1030
SKU1240886
MFGR #6073552
Your Cost: $39.75/ea
List: Sandvik Coromant Gear Milling Insert, Series: CoroMill® 170, 176M..-PM Insert, L-Rectangle, 0.6299 in Inscribed Circle, 0.2165 in Thickness, 0.385 in Width, KH Chipbreaker, 0.0314 in Corner Radius, 0 deg Rake, 0.0866 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 176M40-N100608E-PM 1030, ISO Code: 176M40-N100608E-PM 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: P
Sandvik Coromant Gear Milling Insert, Series: CoroMill® 170, 176M..-PM Insert, L-Rectangle, 0.6299 in Inscribed Circle, 0.2165 in Thickness, 0.385 in Width, KH Chipbreaker, 0.0314 in Corner Radius, 0 deg Rake, 0.0866 in Hole Dia, Manufacturer's Grade: 1030, ANSI Code: 176M40-N100608E-PM 1030, ISO Code: 176M40-N100608E-PM 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: P
ANSI Code 176M40-N100608E-PM 1030 Catalog Number 6073552 Corner Radius 0.0314 in Country of Origin SE Finish PVD-TiAlN Coated Gross Weight Per Pack 0.2300 lb Hand of Insert Neutral Hole Diameter 0.0866 in ISO Code 176M40-N100608E-PM 1030 Material Application Steel Series CoroMill® 176 Thickness 0.217 in UPC 11 69826256534 Width 0.385 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.6299 in Insert Size 40 Insert Style 176 Manufacturer's Grade 1030 Material Carbide Material Grade P Shape Rectangle Flat surface clamping interface 7 deg clearance 10.4 mm L effective cutting edge 1-side cutting 20 life cycle state 1 corner 1 cutting edge
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | 176M40-N100608E-PM 1030 |
| Catalog Number | 6073552 |
| Corner Radius | 0.0314 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN Coated |
| Gross Weight Per Pack | 0.2300 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.0866 in |
| ISO Code | 176M40-N100608E-PM 1030 |
| Material Application | Steel |
| Series | CoroMill® 176 |
| Thickness | 0.217 in |
| UPC 11 | 69826256534 |
| Width | 0.385 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.6299 in |
| Insert Size | 40 |
| Insert Style | 176 |
| Manufacturer's Grade | 1030 |
| Material | Carbide |
| Material Grade | P |
| Shape | Rectangle |
| Flat surface clamping interface |
| 7 deg clearance |
| 10.4 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 1 corner |
| 1 cutting edge |
