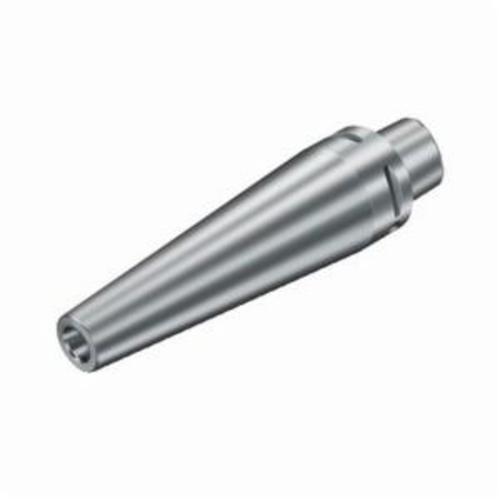

Sandvik Coromant 6070081 Coromant® Capto® to Shrink Fit Chuck Adapter, C4 Taper
Custom_Product_Images_Illustration
Sandvik Coromant 6070081 Coromant® Capto® to Shrink Fit Chuck Adapter, C4 Taper
SKU1230837
MFGR #6070081
Your Cost: $471.56/ea
Sandvik Coromant Adapter, Coromant® Capto® to Shrink Fit Chuck, 3/4 in Hole Dia, C4 Taper, 1.0669 in Nose Dia, 3.7007 in Projection, 1.0669 to 1.5748 in Body Dia Workpiece Side, 1.6141 in Clamping Length, ANSI Code: C4-A391.19-19 094, ISO Code: C4-A391.19-19 094
Sandvik Coromant Adapter, Coromant® Capto® to Shrink Fit Chuck, 3/4 in Hole Dia, C4 Taper, 1.0669 in Nose Dia, 3.7007 in Projection, 1.0669 to 1.5748 in Body Dia Workpiece Side, 1.6141 in Clamping Length, ANSI Code: C4-A391.19-19 094, ISO Code: C4-A391.19-19 094
Alternate Catalog Number C4-A391.19-19 094 ANSI Code C4-A391.19-19 094 Body Diameter Workpiece Side 1.0669 to 1.5748 in Catalog Number 6070081 Clamping Length 1.6141 in Country of Origin SE Gross Weight Per Pack 1.3900 lb Hole Diameter 3/4 in ISO Code C4-A391.19-19 094 Item Group 530 Nose Diameter 1.0669 in Projection 3.7007 in Series 19.05 mm System Size Machine Side C4 Taper Size C4 Type Coromant® Capto® to Shrink Fit Chuck UPC 11 69826255893 Warranty Coromant® Capto® x Shrink Fit Chuck Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Adjustment Range 27.1 mm Shank Type Modular Connection Suitable For Use With 5758337 Key and 5762952 Adjustment Screw Bolt and segment clamping machine side adaptive interface Cylindrical clamping (shrink fits) workpiece side adaptive interface Balanced by design 0 - 5 deg body half taper Axial concentric and radial coolant entry 80 bar coolant Axial concentric coolant exit 94 mm L body 118 mm OAL Cx-A391.19 (3) tool style 40 mm Dia machine side connection 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C4-A391.19-19 094 |
| ANSI Code | C4-A391.19-19 094 |
| Body Diameter Workpiece Side | 1.0669 to 1.5748 in |
| Catalog Number | 6070081 |
| Clamping Length | 1.6141 in |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.3900 lb |
| Hole Diameter | 3/4 in |
| ISO Code | C4-A391.19-19 094 |
| Item Group | 530 |
| Nose Diameter | 1.0669 in |
| Projection | 3.7007 in |
| Series | 19.05 mm |
| System Size Machine Side | C4 |
| Taper Size | C4 |
| Type | Coromant® Capto® to Shrink Fit Chuck |
| UPC 11 | 69826255893 |
| Warranty | Coromant® Capto® x Shrink Fit Chuck |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Adjustment Range | 27.1 mm |
| Shank Type | Modular Connection |
| Suitable For Use With | 5758337 Key and 5762952 Adjustment Screw |
| Bolt and segment clamping machine side adaptive interface |
| Cylindrical clamping (shrink fits) workpiece side adaptive interface |
| Balanced by design |
| 0 - 5 deg body half taper |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Axial concentric coolant exit |
| 94 mm L body |
| 118 mm OAL |
| Cx-A391.19 (3) tool style |
| 40 mm Dia machine side connection |
| 20 life cycle state |
