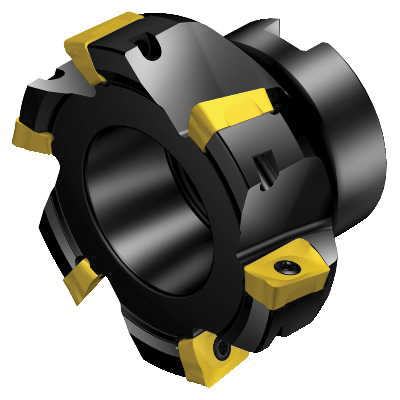

Sandvik Coromant 6068027 CoroMill® 390 Square Shoulder Milling Cutter, RA390..Rxx (XL) Insert, 2.1259 in Cutting, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6068027 CoroMill® 390 Square Shoulder Milling Cutter, RA390..Rxx (XL) Insert, 2.1259 in Cutting, Right Hand
SKU1255244
MFGR #6068027
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 2.1259 in Cutting Dia, 1.5748 in Overall Length, 0.6062 in Maximum Depth of Cut, RA390..Rxx (XL) Insert, 4 Inserts, Insert Compatibility: R390-18, 3/4 in Shank Dia, Right Hand Cutting, ANSI Code: RA390-054R19-18M, ISO Code: RA390-054R19-18M, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 2.1259 in Cutting Dia, 1.5748 in Overall Length, 0.6062 in Maximum Depth of Cut, RA390..Rxx (XL) Insert, 4 Inserts, Insert Compatibility: R390-18, 3/4 in Shank Dia, Right Hand Cutting, ANSI Code: RA390-054R19-18M, ISO Code: RA390-054R19-18M, Steel
ANSI Code RA390-054R19-18M Catalog Number 6068027 Country of Origin US Gross Weight Per Pack 0.6400 lb Head Length R390-18 Insert Gage Screw 19.05 mm ISO Code RA390-054R19-18M Lead Angle 90 Material Steel Series CoroMill® 390 Standards ISO 6462:2011 Type Square UPC 11 69826256171 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 2.1259 in Cutting Direction Right Hand Insert Compatibility R390-18 Insert Style RA390..Rxx (XL) Maximum Depth of Cut 0.6062 in Number of Inserts 4 Overall Length 1.5748 in Shank Diameter 3/4 in Shank Length 40 mm Shank Type Steel 0 mm D plunge Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 54 mm Dia maximum cutting 90 deg cutting edge 40 mm overhang 5 deg maximum ramping 7500 r/min 3 Nm torque 20 life cycle state 1 maximum working engagement ratio Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | RA390-054R19-18M |
| Catalog Number | 6068027 |
| Country of Origin | US |
| Gross Weight Per Pack | 0.6400 lb |
| Head Length | R390-18 |
| Insert Gage Screw | 19.05 mm |
| ISO Code | RA390-054R19-18M |
| Lead Angle | 90 |
| Material | Steel |
| Series | CoroMill® 390 |
| Standards | ISO 6462:2011 |
| Type | Square |
| UPC 11 | 69826256171 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 2.1259 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R390-18 |
| Insert Style | RA390..Rxx (XL) |
| Maximum Depth of Cut | 0.6062 in |
| Number of Inserts | 4 |
| Overall Length | 1.5748 in |
| Shank Diameter | 3/4 in |
| Shank Length | 40 mm |
| Shank Type | Steel |
| 0 mm D plunge |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 54 mm Dia maximum cutting |
| 90 deg cutting edge |
| 40 mm overhang |
| 5 deg maximum ramping |
| 7500 r/min |
| 3 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Hexagon socket head cap screw adaptive interface |
