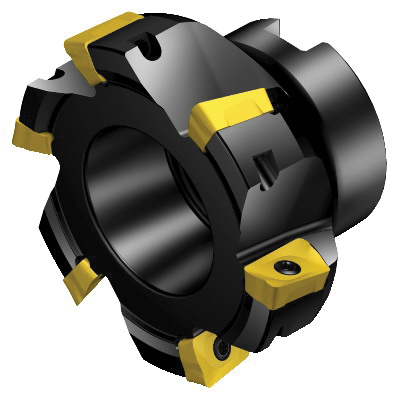

Sandvik Coromant 6068015 CoroMill® 390 Square Shoulder Milling Cutter, R390..Qxx (XL) Insert, 2.1259 in Cutting, Right Hand, 0.6181 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6068015 CoroMill® 390 Square Shoulder Milling Cutter, R390..Qxx (XL) Insert, 2.1259 in Cutting, Right Hand, 0.6181 in Max Depth of Cut
SKU1234784
MFGR #6068015
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 2.1259 in Cutting Dia, 1.5748 in Overall Length, 0.6181 in Maximum Depth of Cut, R390..Qxx (XL) Insert, 4 Inserts, Insert Compatibility: R390-17, 0.8661 in Shank Dia, Right Hand Cutting, ANSI Code: R390-054Q22-17M, ISO Code: R390-054Q22-17M, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 2.1259 in Cutting Dia, 1.5748 in Overall Length, 0.6181 in Maximum Depth of Cut, R390..Qxx (XL) Insert, 4 Inserts, Insert Compatibility: R390-17, 0.8661 in Shank Dia, Right Hand Cutting, ANSI Code: R390-054Q22-17M, ISO Code: R390-054Q22-17M, Steel
Alternate Catalog Number R390-054Q22-17M ANSI Code R390-054Q22-17M Catalog Number 6068015 Country of Origin US Gross Weight Per Pack 1.3000 lb ISO Code R390-054Q22-17M Item Group 450 Lead Angle 90 ° Material Steel Series CoroMill® 390 Standards ISO 6462:2011 UPC 11 69826256181 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 2.1259 in Cutting Direction Right Hand Insert Compatibility R390-17 Insert Style R390..Qxx (XL) Maximum Depth of Cut 0.6181 in Number of Inserts 4 Overall Length 1.5748 in Shank Diameter 0.8661 in Through Coolant Yes 1.5 mm D plunge Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 54 mm Dia maximum cutting 90 deg cutting edge 40 mm overhang 2.5 deg maximum ramping 18200 r/min 3 Nm torque 20 life cycle state 1 maximum working engagement ratio Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-054Q22-17M |
| ANSI Code | R390-054Q22-17M |
| Catalog Number | 6068015 |
| Country of Origin | US |
| Gross Weight Per Pack | 1.3000 lb |
| ISO Code | R390-054Q22-17M |
| Item Group | 450 |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 390 |
| Standards | ISO 6462:2011 |
| UPC 11 | 69826256181 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 2.1259 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R390-17 |
| Insert Style | R390..Qxx (XL) |
| Maximum Depth of Cut | 0.6181 in |
| Number of Inserts | 4 |
| Overall Length | 1.5748 in |
| Shank Diameter | 0.8661 in |
| Through Coolant | Yes |
| 1.5 mm D plunge |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 54 mm Dia maximum cutting |
| 90 deg cutting edge |
| 40 mm overhang |
| 2.5 deg maximum ramping |
| 18200 r/min |
| 3 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Hexagon socket head cap screw adaptive interface |
