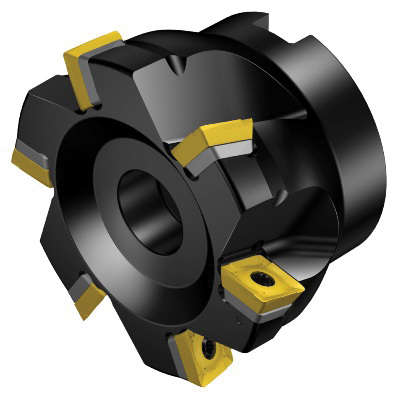

Sandvik Coromant 6068010 CoroMill® 490 Square Shoulder Milling Cutter, A490..Rxx Insert, 3.307 in Cutting, Right Hand, 0.2165 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6068010 CoroMill® 490 Square Shoulder Milling Cutter, A490..Rxx Insert, 3.307 in Cutting, Right Hand, 0.2165 in Max Depth of Cut
SKU1248229
MFGR #6068010
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 3.307 in Cutting Dia, 1.969 in Overall Length, 0.2165 in Maximum Depth of Cut, A490..Rxx Insert, 8 Inserts, Insert Compatibility: 490R-08T308.., 1 in Shank Dia, Right Hand Cutting, ANSI Code: A490-084R25-08M, ISO Code: A490-084R25-08M, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 3.307 in Cutting Dia, 1.969 in Overall Length, 0.2165 in Maximum Depth of Cut, A490..Rxx Insert, 8 Inserts, Insert Compatibility: 490R-08T308.., 1 in Shank Dia, Right Hand Cutting, ANSI Code: A490-084R25-08M, ISO Code: A490-084R25-08M, Steel
ANSI Code A490-084R25-08M Catalog Number 6068010 Country of Origin US Gross Weight Per Pack 2.8600 lb Head Length CoroMill® 490 Insert Gage Screw Square ISO Code A490-084R25-08M Lead Angle 90 Material Steel Series CoroMill® 490 Standards ISO 6462:2011 Type Square UPC 11 69826255731 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 3.307 in Cutting Direction Right Hand Insert Compatibility 490R-08T308.. Insert Style A490..Rxx Maximum Depth of Cut 0.2165 in Number of Inserts 8 Overall Length 1.969 in Shank Diameter 1 in Shank Length A490-084R25-08M Shank Type Right Hand Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 84 mm Dia maximum cutting 90 deg cutting edge 50.0126 mm overhang 0 deg maximum ramping 18900 r/min cutting feed 1.2 Nm torque 20 life cycle state 1 maximum working engagement ratio Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | A490-084R25-08M |
| Catalog Number | 6068010 |
| Country of Origin | US |
| Gross Weight Per Pack | 2.8600 lb |
| Head Length | CoroMill® 490 |
| Insert Gage Screw | Square |
| ISO Code | A490-084R25-08M |
| Lead Angle | 90 |
| Material | Steel |
| Series | CoroMill® 490 |
| Standards | ISO 6462:2011 |
| Type | Square |
| UPC 11 | 69826255731 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 3.307 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 490R-08T308.. |
| Insert Style | A490..Rxx |
| Maximum Depth of Cut | 0.2165 in |
| Number of Inserts | 8 |
| Overall Length | 1.969 in |
| Shank Diameter | 1 in |
| Shank Length | A490-084R25-08M |
| Shank Type | Right Hand |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 84 mm Dia maximum cutting |
| 90 deg cutting edge |
| 50.0126 mm overhang |
| 0 deg maximum ramping |
| 18900 r/min cutting feed |
| 1.2 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Hexagon socket head cap screw adaptive interface |
