Sandvik Coromant

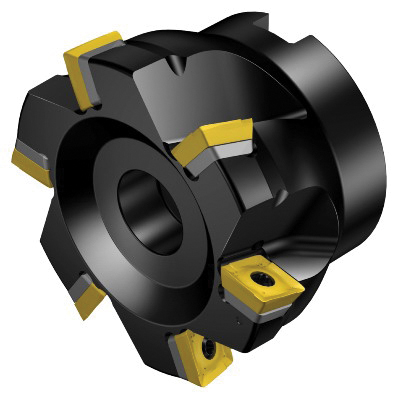

Sandvik Coromant 6068007 CoroMill® 490 Square Shoulder Milling Cutter, A490..Rxx Insert, 2.1259 in Cutting, Right Hand, 0.394 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6068007 CoroMill® 490 Square Shoulder Milling Cutter, A490..Rxx Insert, 2.1259 in Cutting, Right Hand, 0.394 in Max Depth of Cut
SKU1248262
MFGR #6068007
Your Cost: $622.53/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 2.1259 in Cutting Dia, 1.575 in Overall Length, 0.394 in Maximum Depth of Cut, A490..Rxx Insert, 4 Inserts, Insert Compatibility: 490R-1404.., 3/4 in Shank Dia, Right Hand Cutting, ANSI Code: A490-054R19-14M, ISO Code: A490-054R19-14M, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 2.1259 in Cutting Dia, 1.575 in Overall Length, 0.394 in Maximum Depth of Cut, A490..Rxx Insert, 4 Inserts, Insert Compatibility: 490R-1404.., 3/4 in Shank Dia, Right Hand Cutting, ANSI Code: A490-054R19-14M, ISO Code: A490-054R19-14M, Steel
ANSI Code A490-054R19-14M Catalog Number 6068007 Country of Origin US Finish Square Gross Weight Per Pack 0.7500 lb Head Length 19.05 mm Insert Gage Screw 19.05 mm ISO Code A490-054R19-14M Lead Angle 90 Material Steel Series CoroMill® 490 Standards ISO 6462:2011 Type Square UPC 11 69826255728 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 2.1259 in Cutting Direction Right Hand Insert Compatibility 490R-1404.. Insert Style A490..Rxx Maximum Depth of Cut 0.394 in Number of Inserts 4 Overall Length 1.575 in Shank Diameter 3/4 in Shank Length Right Hand Shank Type 4 Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 54 mm Dia maximum cutting 90 deg cutting edge 40.005 mm overhang 0 deg maximum ramping 13000 r/min cutting feed 3 Nm torque 20 life cycle state 1 maximum working engagement ratio Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | A490-054R19-14M |
| Catalog Number | 6068007 |
| Country of Origin | US |
| Finish | Square |
| Gross Weight Per Pack | 0.7500 lb |
| Head Length | 19.05 mm |
| Insert Gage Screw | 19.05 mm |
| ISO Code | A490-054R19-14M |
| Lead Angle | 90 |
| Material | Steel |
| Series | CoroMill® 490 |
| Standards | ISO 6462:2011 |
| Type | Square |
| UPC 11 | 69826255728 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 2.1259 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 490R-1404.. |
| Insert Style | A490..Rxx |
| Maximum Depth of Cut | 0.394 in |
| Number of Inserts | 4 |
| Overall Length | 1.575 in |
| Shank Diameter | 3/4 in |
| Shank Length | Right Hand |
| Shank Type | 4 |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 54 mm Dia maximum cutting |
| 90 deg cutting edge |
| 40.005 mm overhang |
| 0 deg maximum ramping |
| 13000 r/min cutting feed |
| 3 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Hexagon socket head cap screw adaptive interface |
