Sandvik Coromant

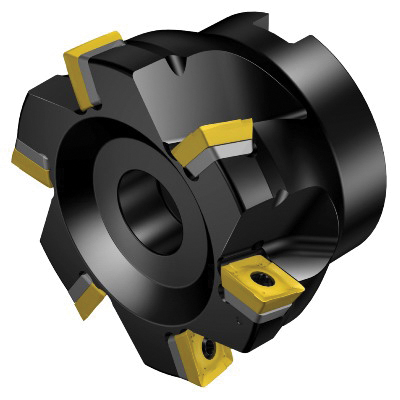

Sandvik Coromant 6068003 CoroMill® 490 Square Shoulder Milling Cutter, 490..Qxx Insert, 2.5984 in Cutting, Right Hand, 0.394 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6068003 CoroMill® 490 Square Shoulder Milling Cutter, 490..Qxx Insert, 2.5984 in Cutting, Right Hand, 0.394 in Max Depth of Cut
SKU1240470
MFGR #6068003
Your Cost: $1,103.40/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 2.5984 in Cutting Dia, 1.5748 in Overall Length, 0.394 in Maximum Depth of Cut, 490..Qxx Insert, 5 Inserts, Insert Compatibility: 490R-1404.., 0.8661 in Shank Dia, Right Hand Cutting, ANSI Code: 490-066Q22-14M, ISO Code: 490-066Q22-14M, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 490, 2.5984 in Cutting Dia, 1.5748 in Overall Length, 0.394 in Maximum Depth of Cut, 490..Qxx Insert, 5 Inserts, Insert Compatibility: 490R-1404.., 0.8661 in Shank Dia, Right Hand Cutting, ANSI Code: 490-066Q22-14M, ISO Code: 490-066Q22-14M, Steel
Alternate Catalog Number 490-066Q22-14M ANSI Code 490-066Q22-14M Catalog Number 6068003 Country of Origin SE Gross Weight Per Pack 1.6800 lb ISO Code 490-066Q22-14M Item Group 455 Lead Angle 90 ° Material Steel Series CoroMill® 490 Standards ISO 6462:2011 UPC 11 69826256383 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 2.5984 in Cutting Direction Right Hand Insert Compatibility 490R-1404.. Insert Style 490..Qxx Maximum Depth of Cut 0.394 in Number of Inserts 5 Overall Length 1.5748 in Shank Diameter 0.8661 in Through Coolant Yes Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 66 mm Dia maximum cutting 90 deg cutting edge 40 mm overhang 0 deg maximum ramping 11400 r/min cutting feed 3 Nm torque 20 life cycle state 1 maximum working engagement ratio Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 490-066Q22-14M |
| ANSI Code | 490-066Q22-14M |
| Catalog Number | 6068003 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.6800 lb |
| ISO Code | 490-066Q22-14M |
| Item Group | 455 |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 490 |
| Standards | ISO 6462:2011 |
| UPC 11 | 69826256383 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 2.5984 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 490R-1404.. |
| Insert Style | 490..Qxx |
| Maximum Depth of Cut | 0.394 in |
| Number of Inserts | 5 |
| Overall Length | 1.5748 in |
| Shank Diameter | 0.8661 in |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 66 mm Dia maximum cutting |
| 90 deg cutting edge |
| 40 mm overhang |
| 0 deg maximum ramping |
| 11400 r/min cutting feed |
| 3 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Hexagon socket head cap screw adaptive interface |
