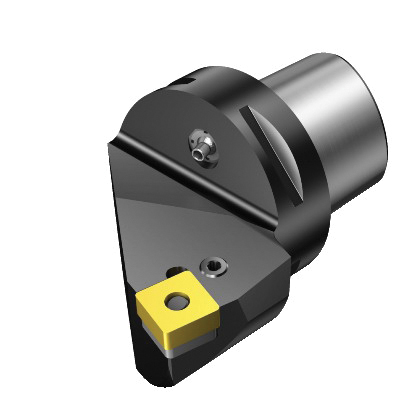

Sandvik Coromant 6067808 T-Max® P Turning Cutting Unit, 4.3307 in, 6.6929 in OAL, Right Hand, SNMG 250724 Insert
Modular Turning/Profiling Cutting Heads
1237050
MFG #: 6067808
Sandvik Coromant
619.07000
/ ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.3307 in Head Length/Projection, 6.6929 in Overall Length, S-Shape Insert, Insert Compatibility: SNMG 250724, Right Hand Cutting, 2.2834 in Center to Cutting Edge, Steel
- Features
| Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 10 bar coolant |
| Lever hole clamping |
| Decentral coolant exit with nozzles, adjustable |
| 100 mm Dia connection |
| 75 deg cutting edge |
| -6 deg inclination |
| 12 deg ramping |
| 17 Nm torque |
| 1 in insert seat size |
| 110 mm maximum overhang |
| 15 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C10-PSRNR-58110-25 |
| ISO Code: C10-PSRNR-58110-25 |
