Sandvik Coromant

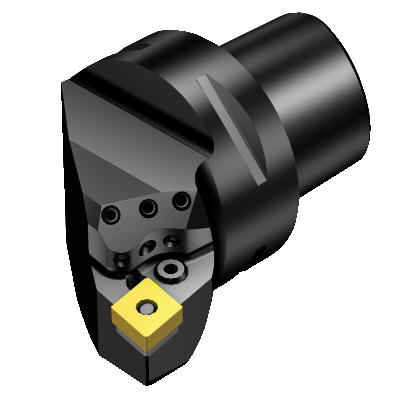

Sandvik Coromant 6067789 T-Max® P Turning Cutting Unit, 4.3307 in, 6.6929 in OAL, Right Hand, CNMG 190612 Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6067789 T-Max® P Turning Cutting Unit, 4.3307 in, 6.6929 in OAL, Right Hand, CNMG 190612 Insert
SKU1237023
MFGR #6067789
Your Cost: $930.34/ea
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.3307 in Head Length/Projection, 6.6929 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 190612, Right Hand Cutting, 2.6771 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: T-Max® P, 4.3307 in Head Length/Projection, 6.6929 in Overall Length, C-80 deg Diamond Insert, Insert Compatibility: CNMG 190612, Right Hand Cutting, 2.6771 in Center to Cutting Edge, Steel
Alternate Catalog Number C10-PCLNR-68110-19HP Catalog Number 6067789 Country of Origin DE Gross Weight Per Pack 13.4500 lb Head Length|Projection 110 mm Insert Style CNMG Item Group 410 Material Steel Overall Length 170 mm Series T-Max® P UPC 11 69826255800 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 68 mm Cutting Direction Right Hand Insert Compatibility CNMG 190612 Insert Holding Method Lever Hole Clamp Internal or External External System Size C10 Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 80 bar coolant Lever hole clamping Decentral focused coolant exit with nozzles 100 mm Dia connection 220 - 315 mm Dia minimum bore 95 deg cutting edge -6 deg inclination 0 deg ramping 10 Nm torque 3/4 in insert seat size 110 mm maximum overhang -5 deg lead -6 deg rake Bolt and segment clamping adaptive interface ANSI Code: C10-PCLNR-68110-19HP ISO Code: C10-PCLNR-68110-19HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C10-PCLNR-68110-19HP |
| Catalog Number | 6067789 |
| Country of Origin | DE |
| Gross Weight Per Pack | 13.4500 lb |
| Head Length|Projection | 110 mm |
| Insert Style | CNMG |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 170 mm |
| Series | T-Max® P |
| UPC 11 | 69826255800 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 68 mm |
| Cutting Direction | Right Hand |
| Insert Compatibility | CNMG 190612 |
| Insert Holding Method | Lever Hole Clamp |
| Internal or External | External |
| System Size | C10 |
| Stable and secure clamping|Chip control and process security|Excellent surface finish|Reliable and secure machining, even in roughing applications|Possibility to optimize by using damped Silent Tools™ |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| Lever hole clamping |
| Decentral focused coolant exit with nozzles |
| 100 mm Dia connection |
| 220 - 315 mm Dia minimum bore |
| 95 deg cutting edge |
| -6 deg inclination |
| 0 deg ramping |
| 10 Nm torque |
| 3/4 in insert seat size |
| 110 mm maximum overhang |
| -5 deg lead |
| -6 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C10-PCLNR-68110-19HP |
| ISO Code: C10-PCLNR-68110-19HP |
