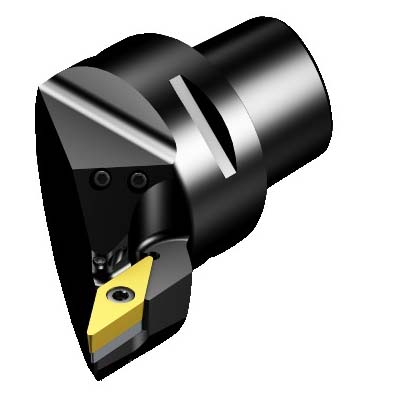

Sandvik Coromant 6066660 CoroTurn® 107 Turning Cutting Unit, 3.1496 in, 5.0393 in OAL, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6066660 CoroTurn® 107 Turning Cutting Unit, 3.1496 in, 5.0393 in OAL, Right Hand
SKU1241160
MFGR #6066660
Your Cost: $980.29/ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 3.1496 in Head Length/Projection, 5.0393 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 160408 and VCMT 160408, Right Hand Cutting, 2.1653 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 3.1496 in Head Length/Projection, 5.0393 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 160408 and VCMT 160408, Right Hand Cutting, 2.1653 in Center to Cutting Edge, Steel
Alternate Catalog Number C8-SVUBR-55080-16HP Catalog Number 6066660 Country of Origin IN Gross Weight Per Pack 6.1500 lb Head Length|Projection 80 mm Insert Style VBMT Item Group 410 Material Steel Overall Length 128 mm Series CoroTurn® 107 UPC 11 69826256087 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 55 mm Cutting Direction Right Hand Insert Compatibility VBMT 160408 Insert Holding Method Screw Clamp Internal or External Internal/External System Size C8 Unobstructed chip flow|Excellent chip control|Exceptional surface finish 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 80 bar coolant 40 - 60 deg insert screw clamping Decentral focused coolant exit with nozzles 80 mm Dia connection 100 mm Dia minimum bore 93 deg cutting edge 0 deg inclination 0 deg ramping 3 Nm torque 3/8 in insert seat size 80 mm maximum overhang -3 deg lead 0 deg rake Bolt and segment clamping adaptive interface ANSI Code: C8-SVUBR-55080-16HP ISO Code: C8-SVUBR-55080-16HP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C8-SVUBR-55080-16HP |
| Catalog Number | 6066660 |
| Country of Origin | IN |
| Gross Weight Per Pack | 6.1500 lb |
| Head Length|Projection | 80 mm |
| Insert Style | VBMT |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 128 mm |
| Series | CoroTurn® 107 |
| UPC 11 | 69826256087 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 55 mm |
| Cutting Direction | Right Hand |
| Insert Compatibility | VBMT 160408 |
| Insert Holding Method | Screw Clamp |
| Internal or External | Internal/External |
| System Size | C8 |
| Unobstructed chip flow|Excellent chip control|Exceptional surface finish |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral focused coolant exit with nozzles |
| 80 mm Dia connection |
| 100 mm Dia minimum bore |
| 93 deg cutting edge |
| 0 deg inclination |
| 0 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| 80 mm maximum overhang |
| -3 deg lead |
| 0 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C8-SVUBR-55080-16HP |
| ISO Code: C8-SVUBR-55080-16HP |
