Unobstructed chip flow|Excellent chip control|Exceptional surface finish |
20 life cycle state |
0 deg body workpiece side |
Axial concentric and radial coolant entry |
80 bar coolant |
40 - 60 deg insert screw clamping |
Decentral focused coolant exit with nozzles |
80 mm Dia connection |
100 mm Dia minimum bore |
93 deg cutting edge |
0 deg inclination |
0 deg ramping |
3 Nm torque |
3/8 in insert seat size |
80 mm maximum overhang |
-3 deg lead |
0 deg rake |
Bolt and segment clamping adaptive interface |

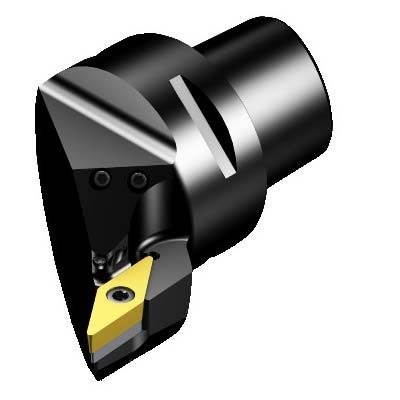

ANSI Code: C8-SVUBL-55080-16HP |
ISO Code: C8-SVUBL-55080-16HP |
